Sonoff MiniR2 setup

2023-12-12
console, sonoff

Sonoff Mini R2 also supports API mode(eWeLink). Please refer to Sonoff BasicR2 Setup. The following is the DIY mode.

1. Connect wires securely.
2. Power on the MiniR2 device.

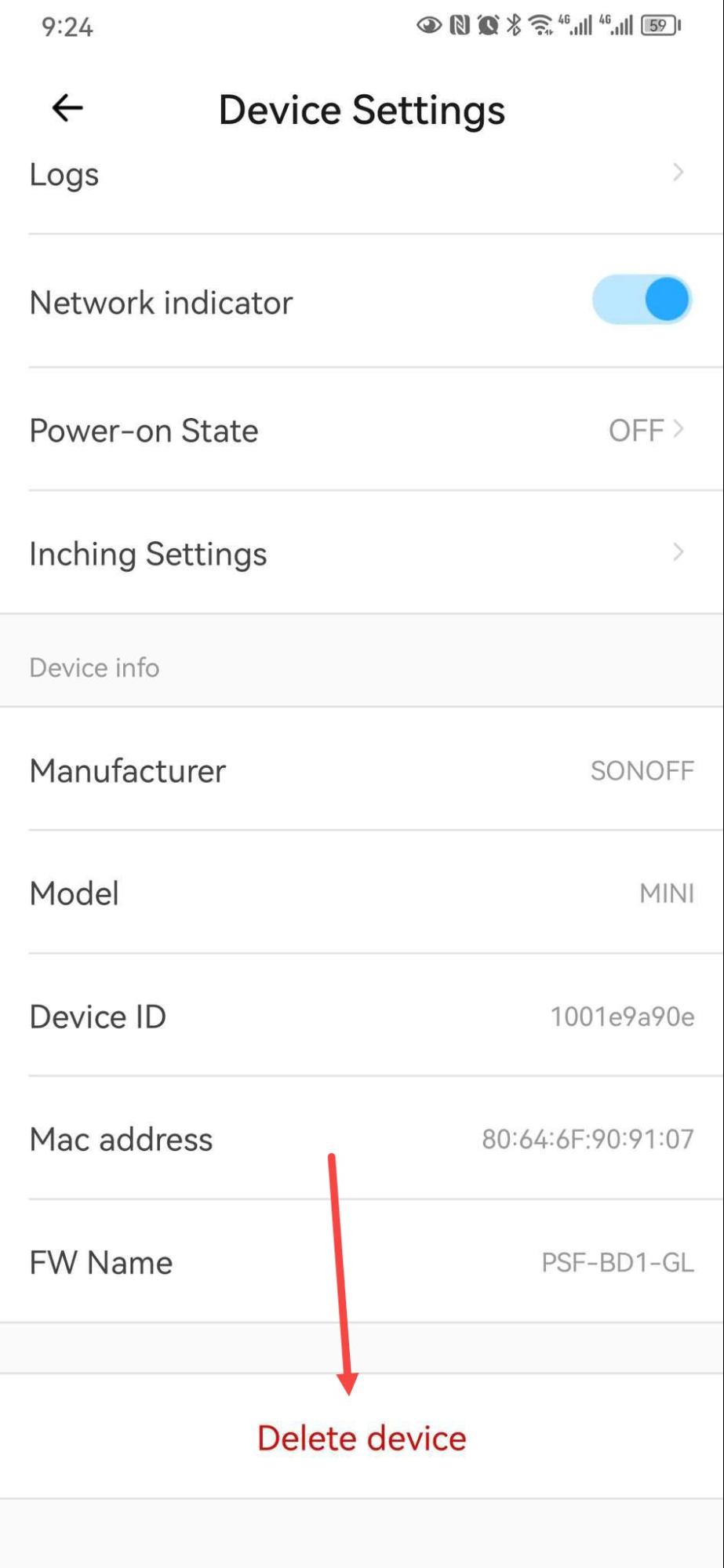

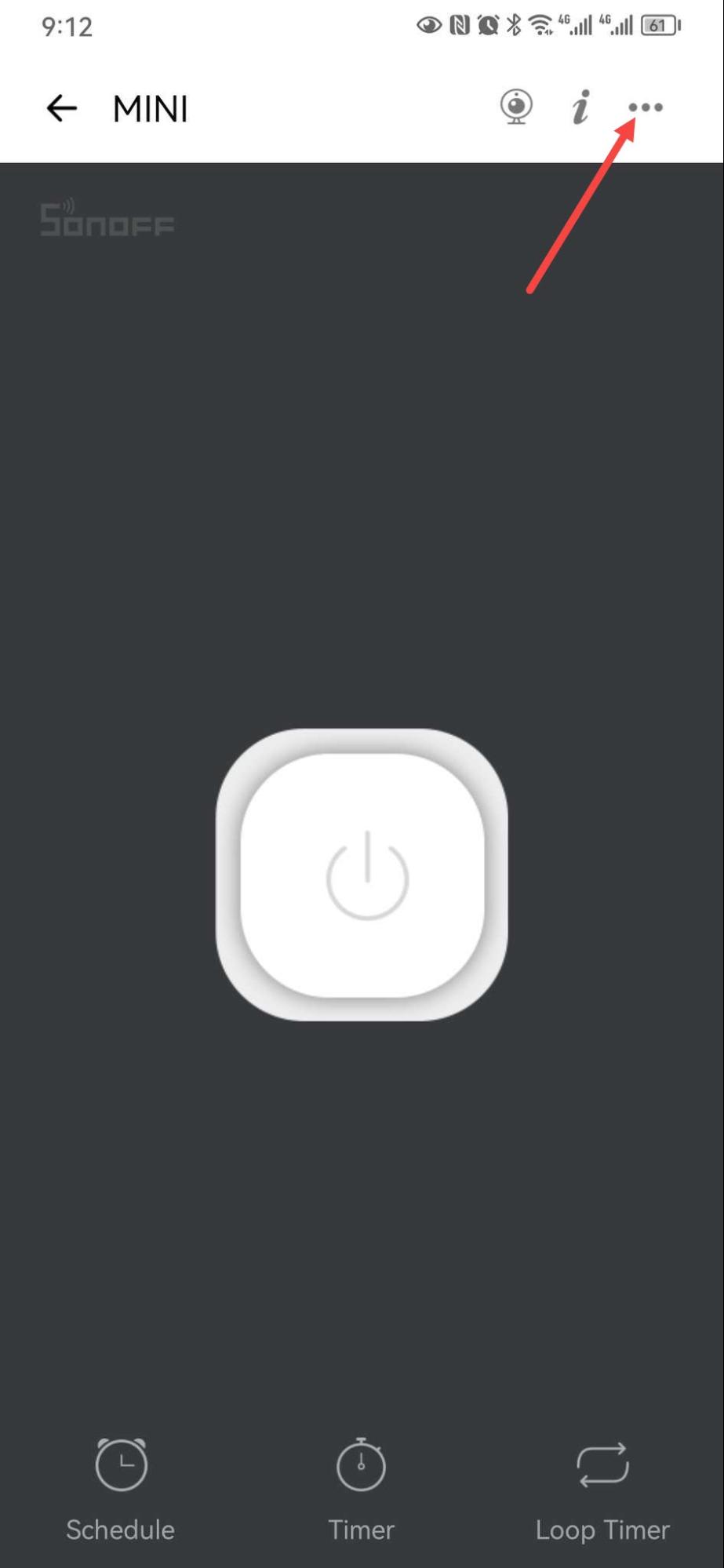

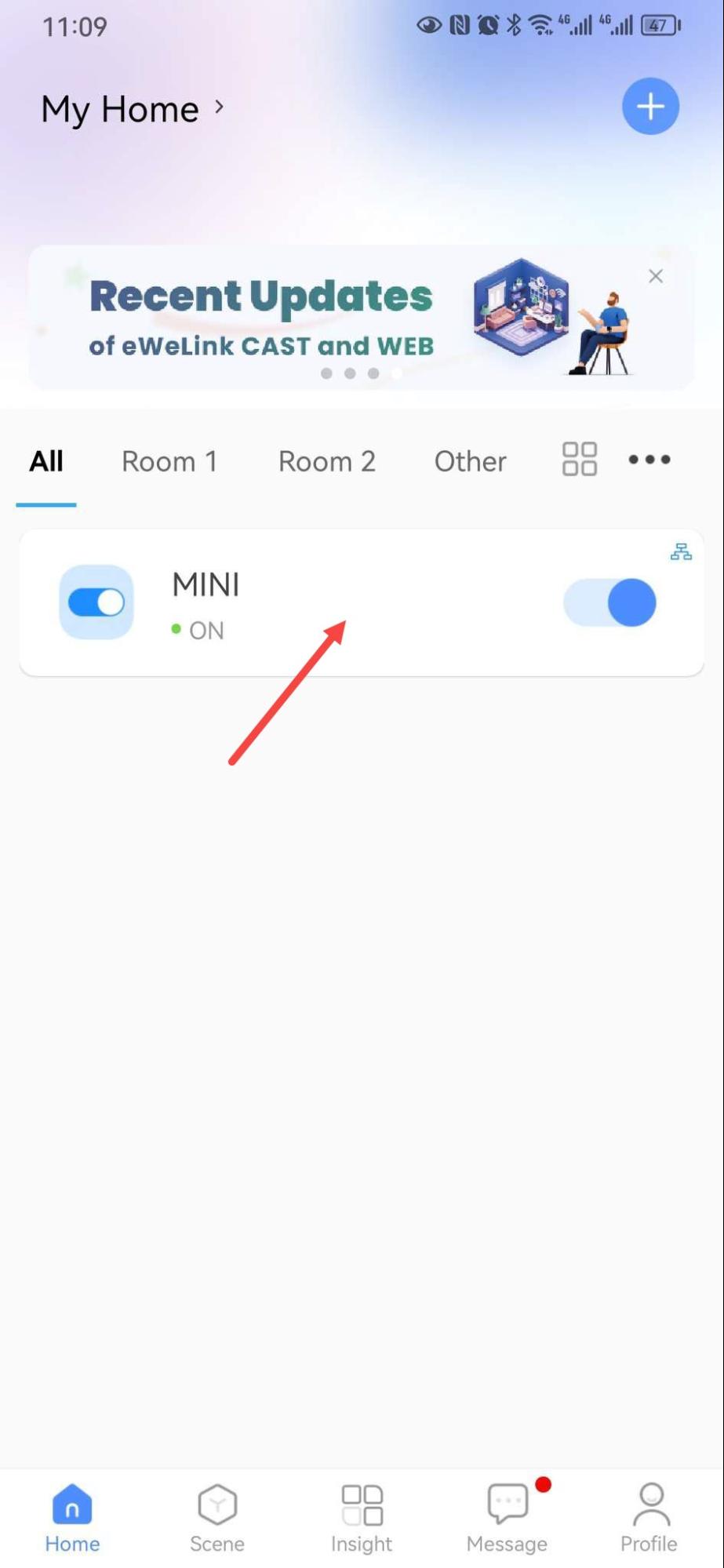

3. If the device is already added to the Sonoff App, delete it (refer to figure 1, 2 and 3).

Figure 1

Figure 2

Figure 3

4. Press the button for 5 seconds.
5. Press the button for 5 seconds again.

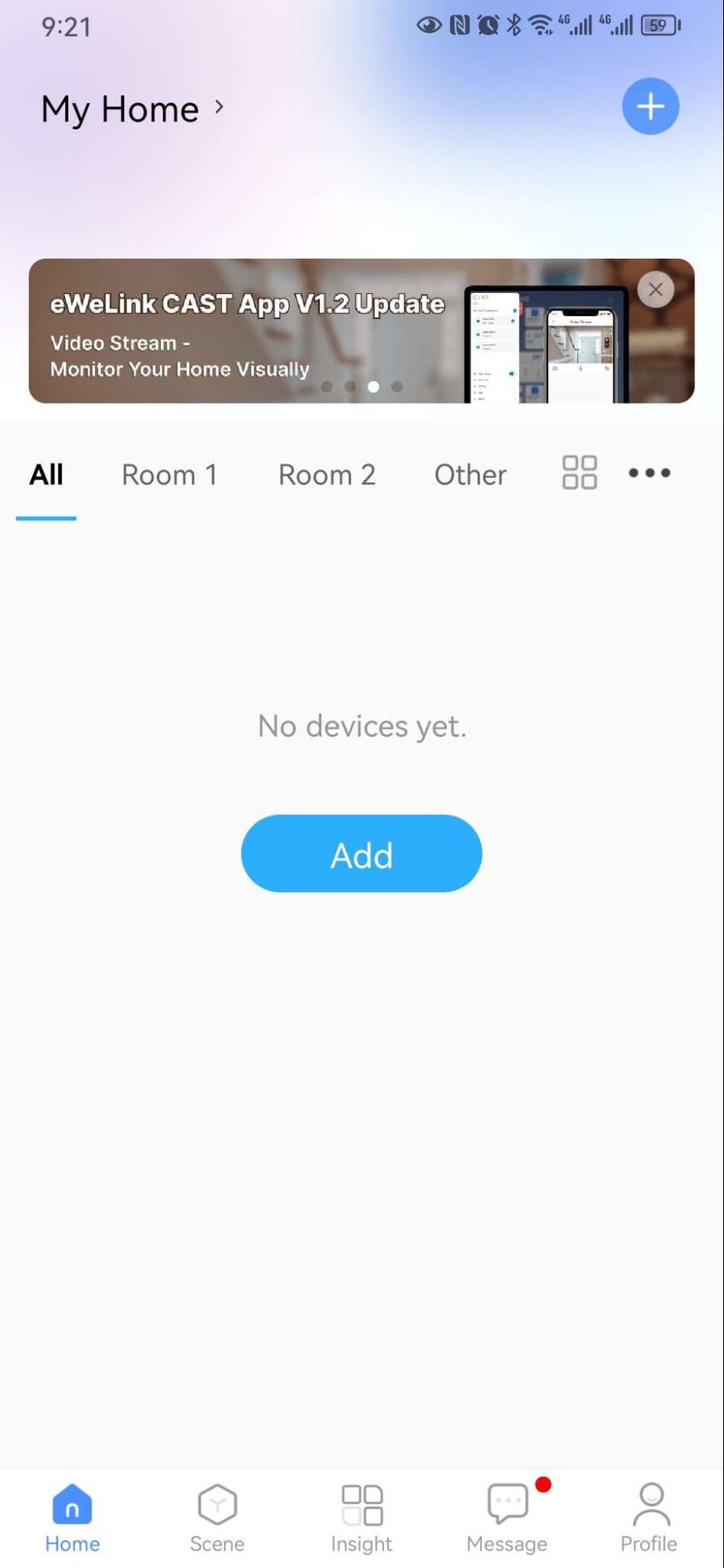

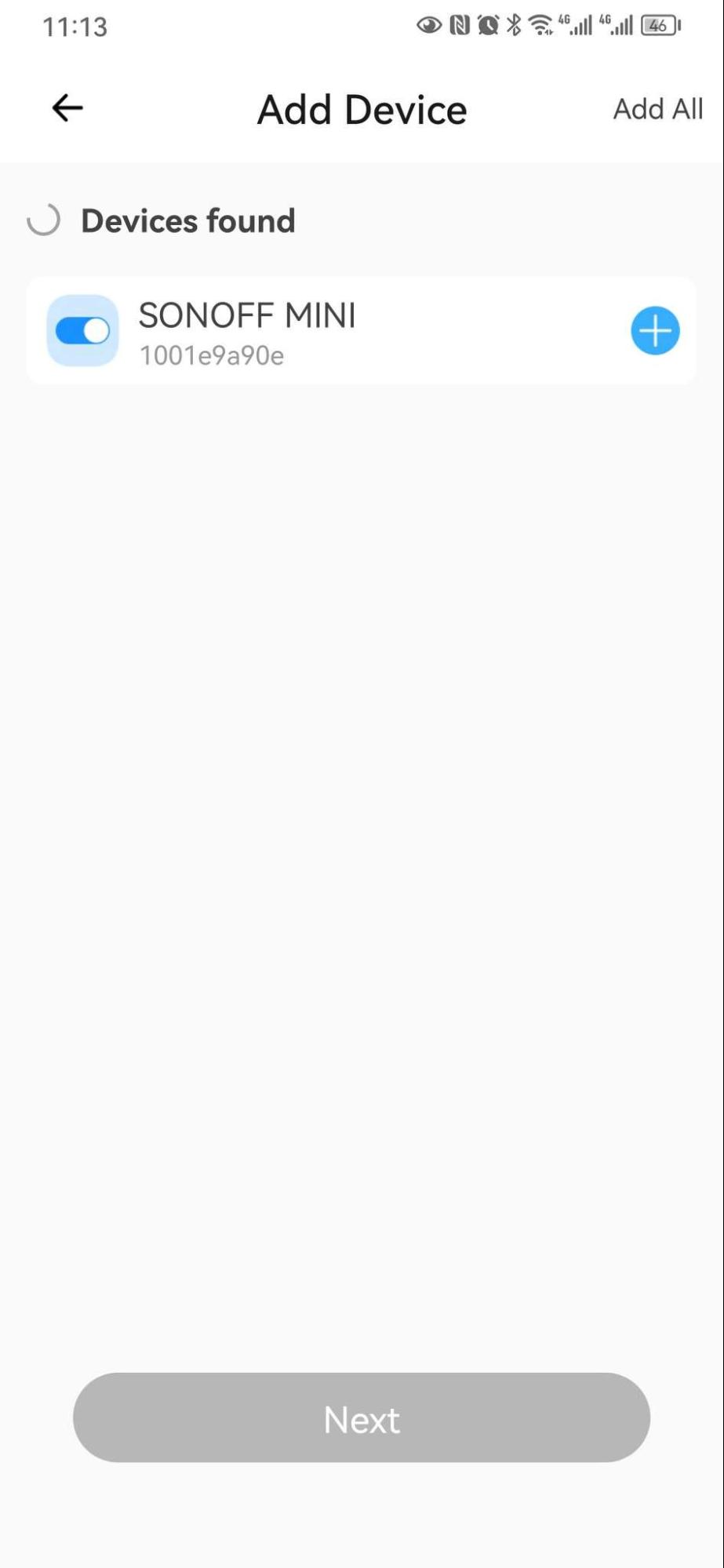

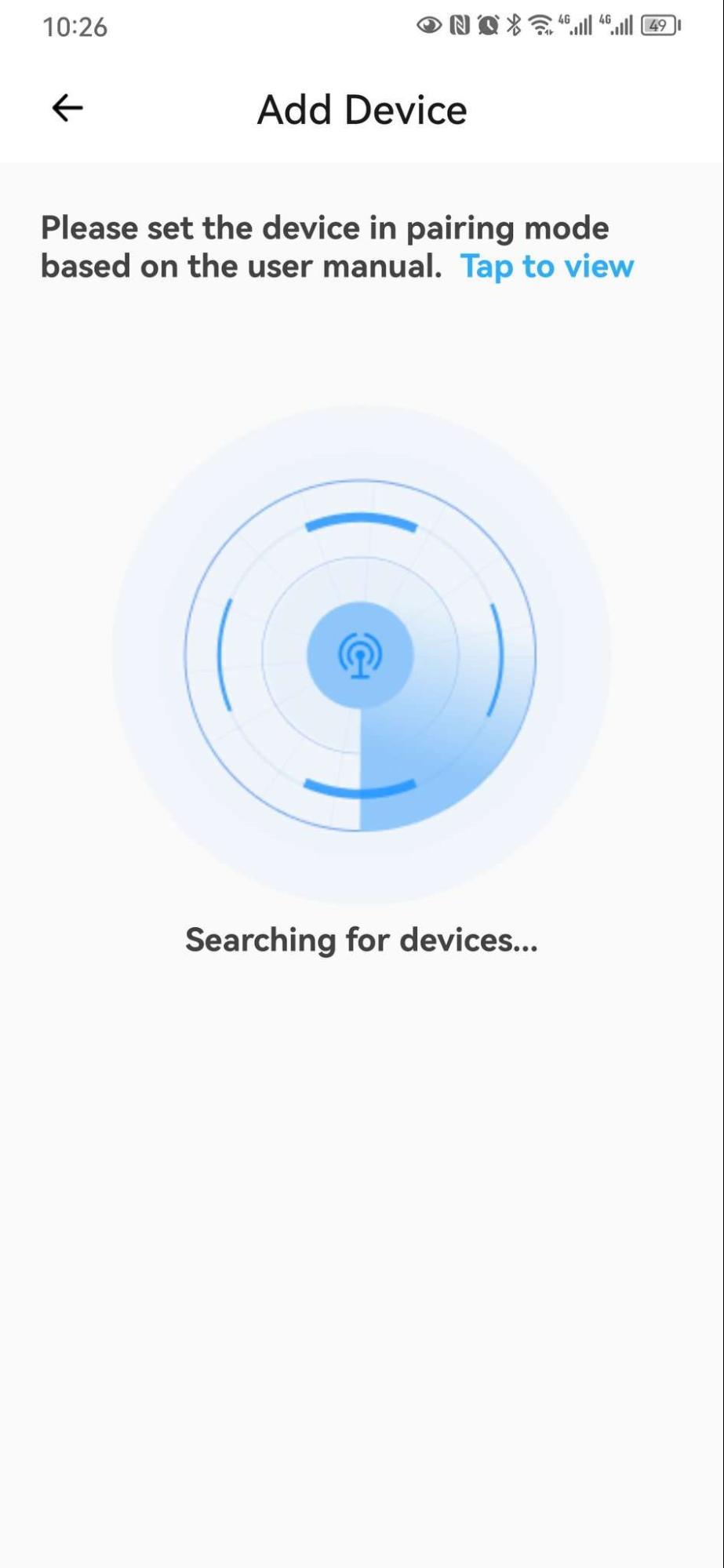

6. Use the Sonoff App to add the device. If not added previously, you may skip this step.

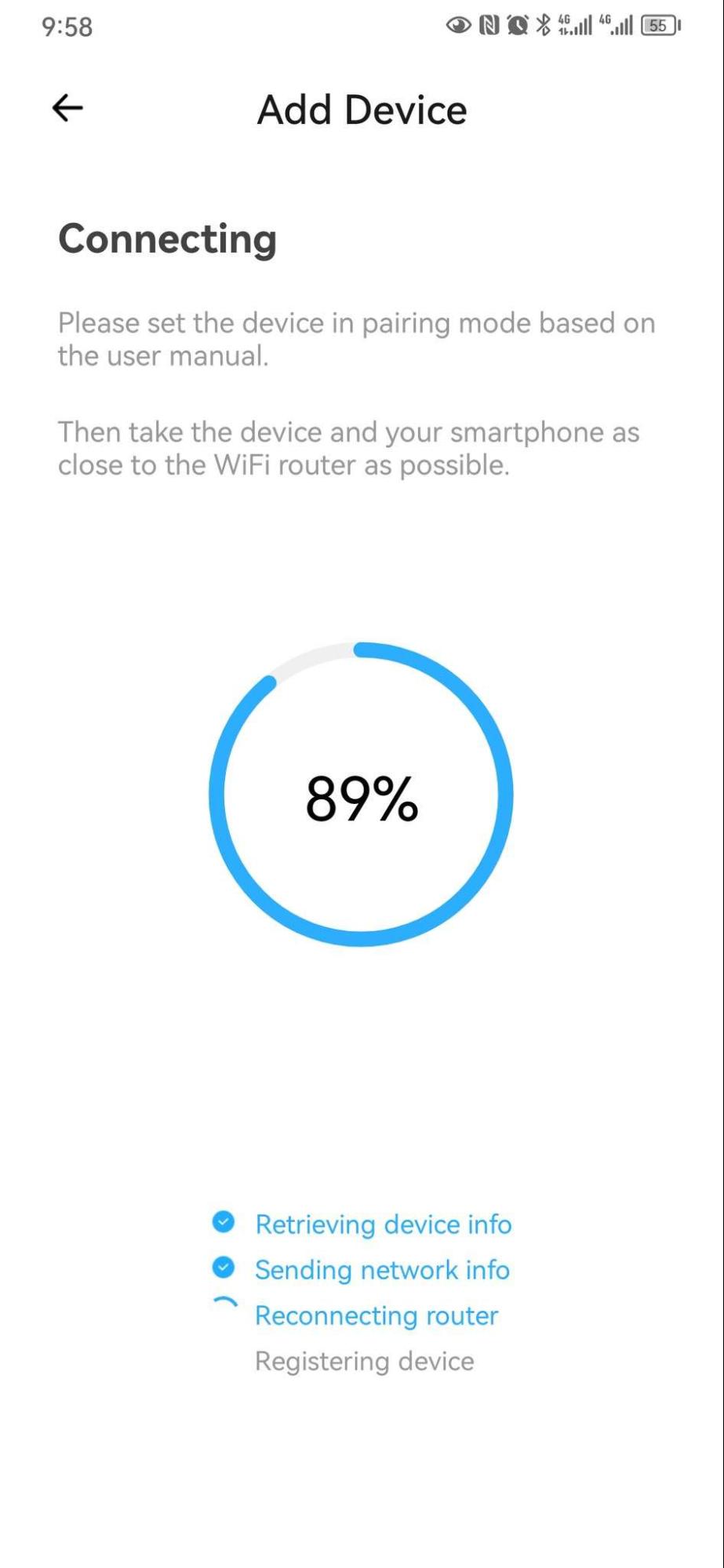

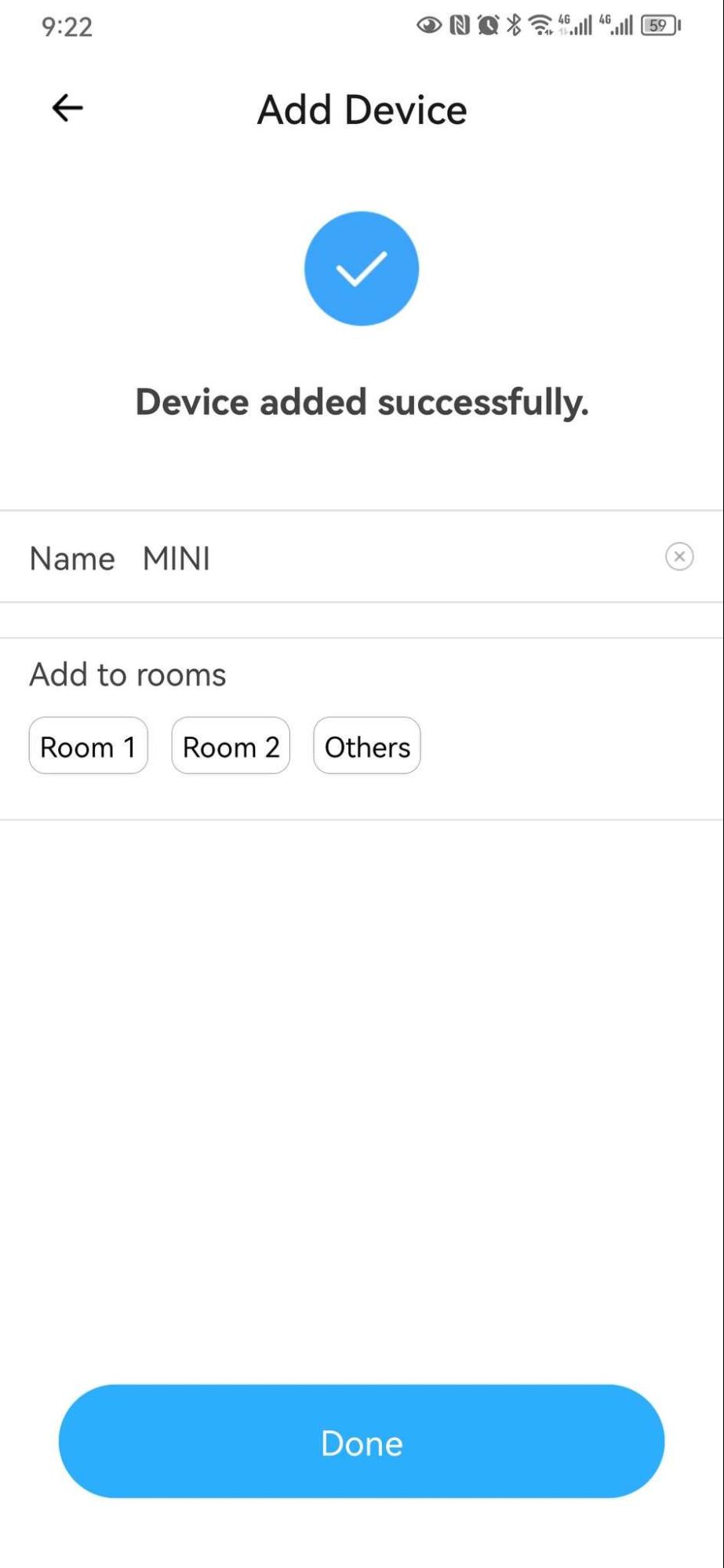

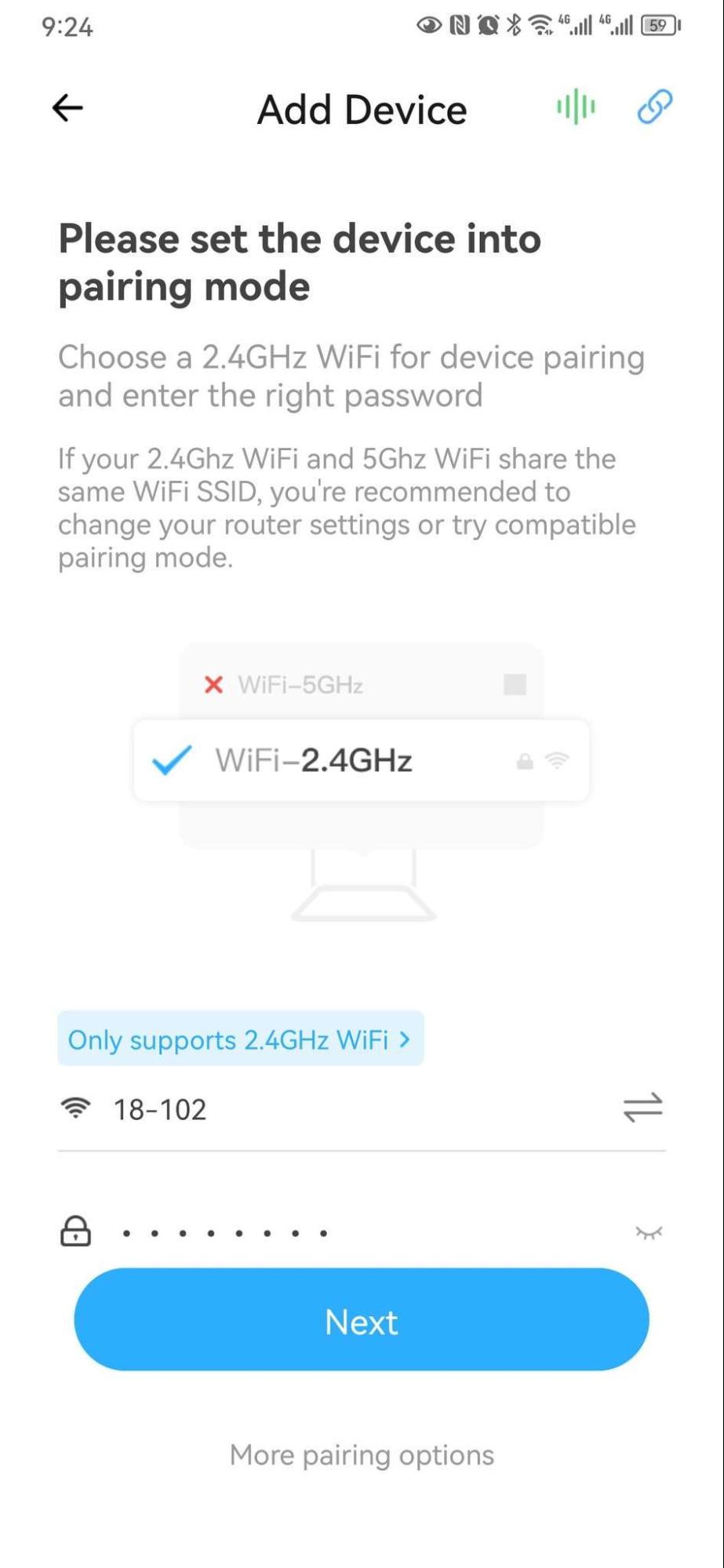

7. If the device wasn't added to the app, accessing 10.10.7.1 in step 10 might be problematic.(refer to figure 1 to 10)

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

Figure 10

8. Press the button for 5 seconds.
9. Press the button for 5 seconds again. (The operation must complete within 3 minutes)

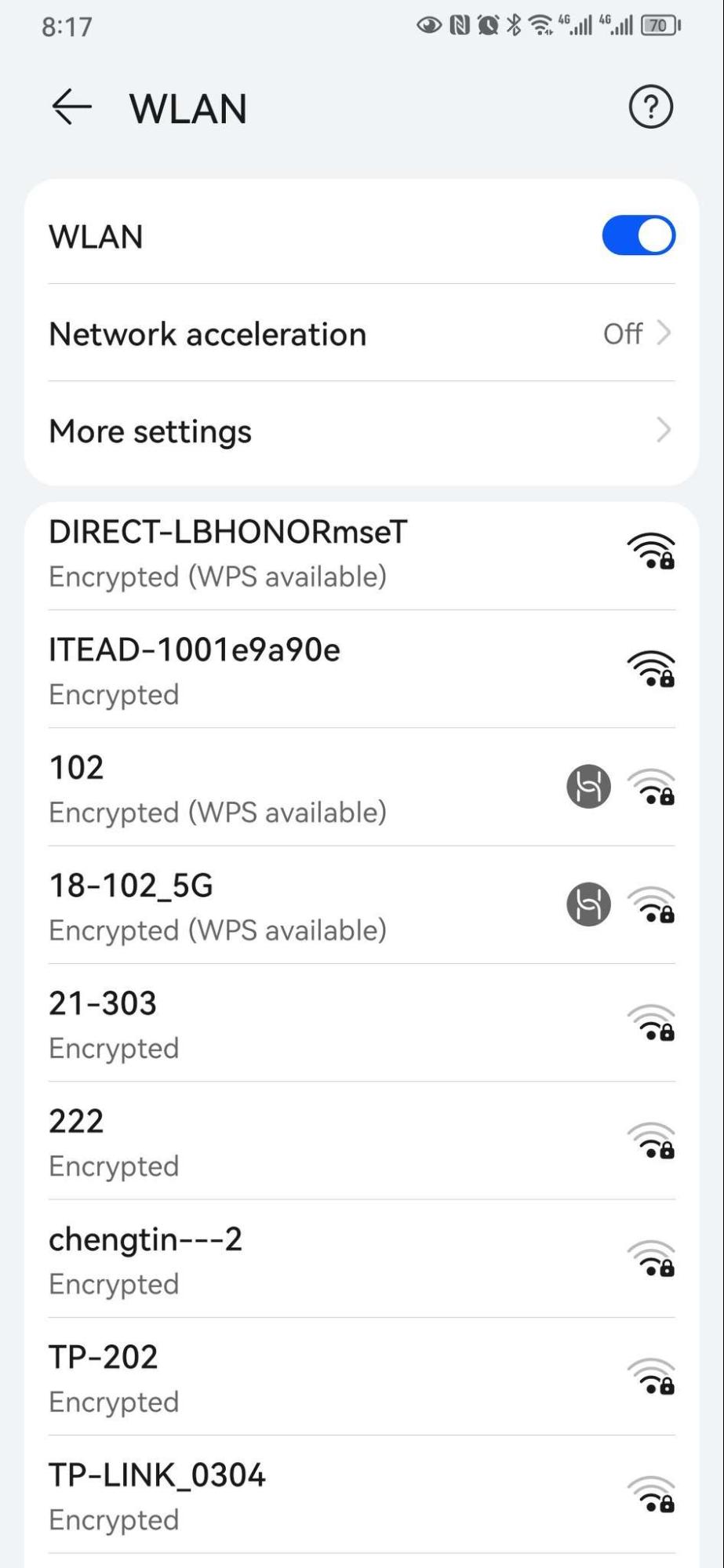

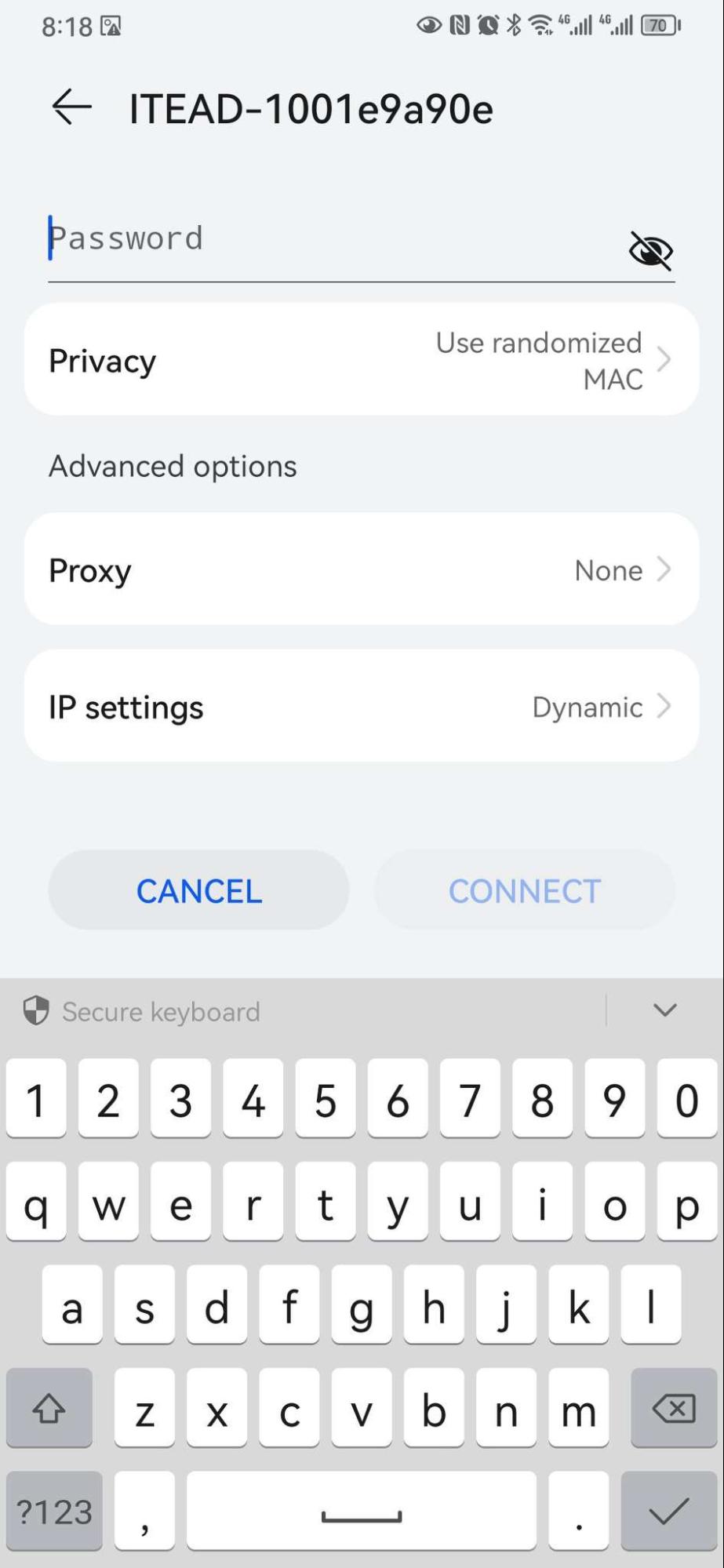

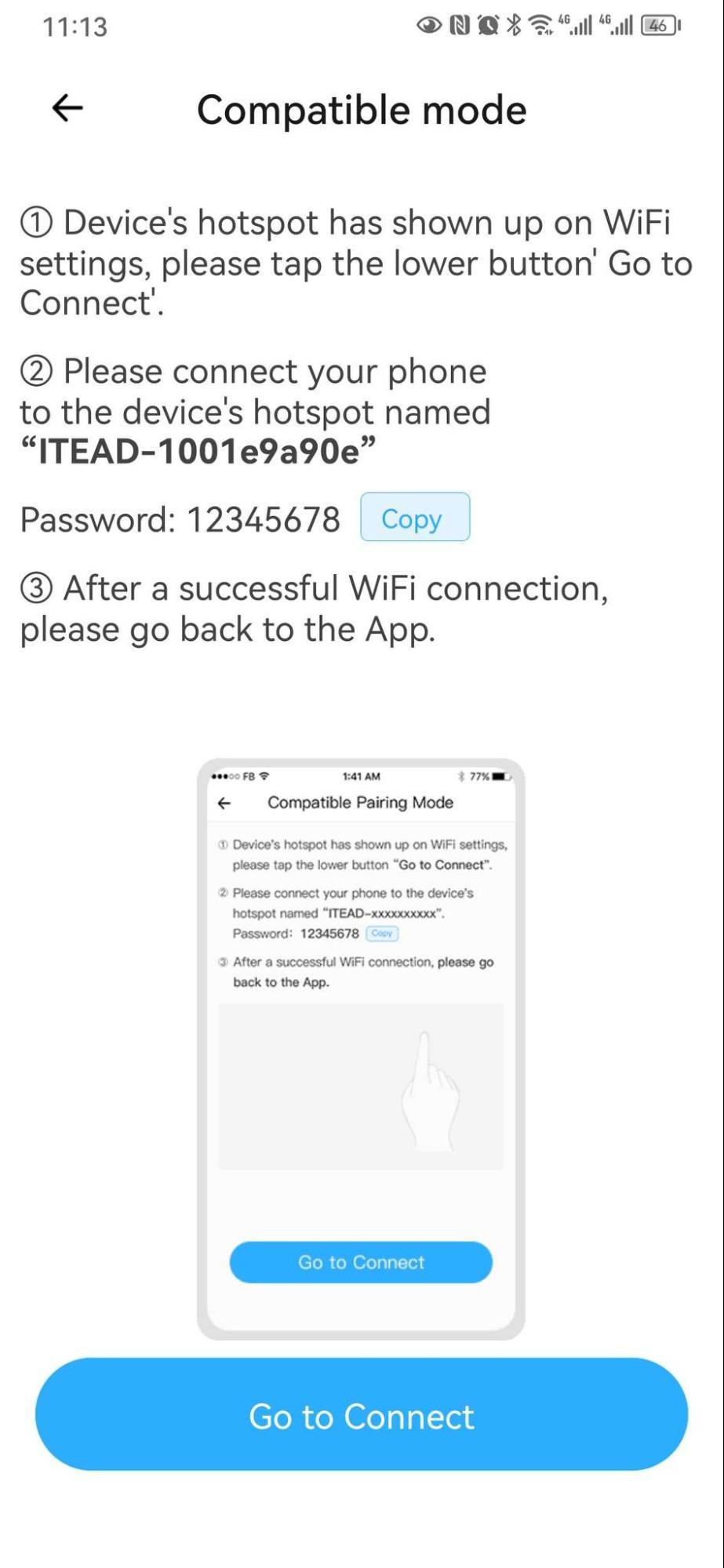

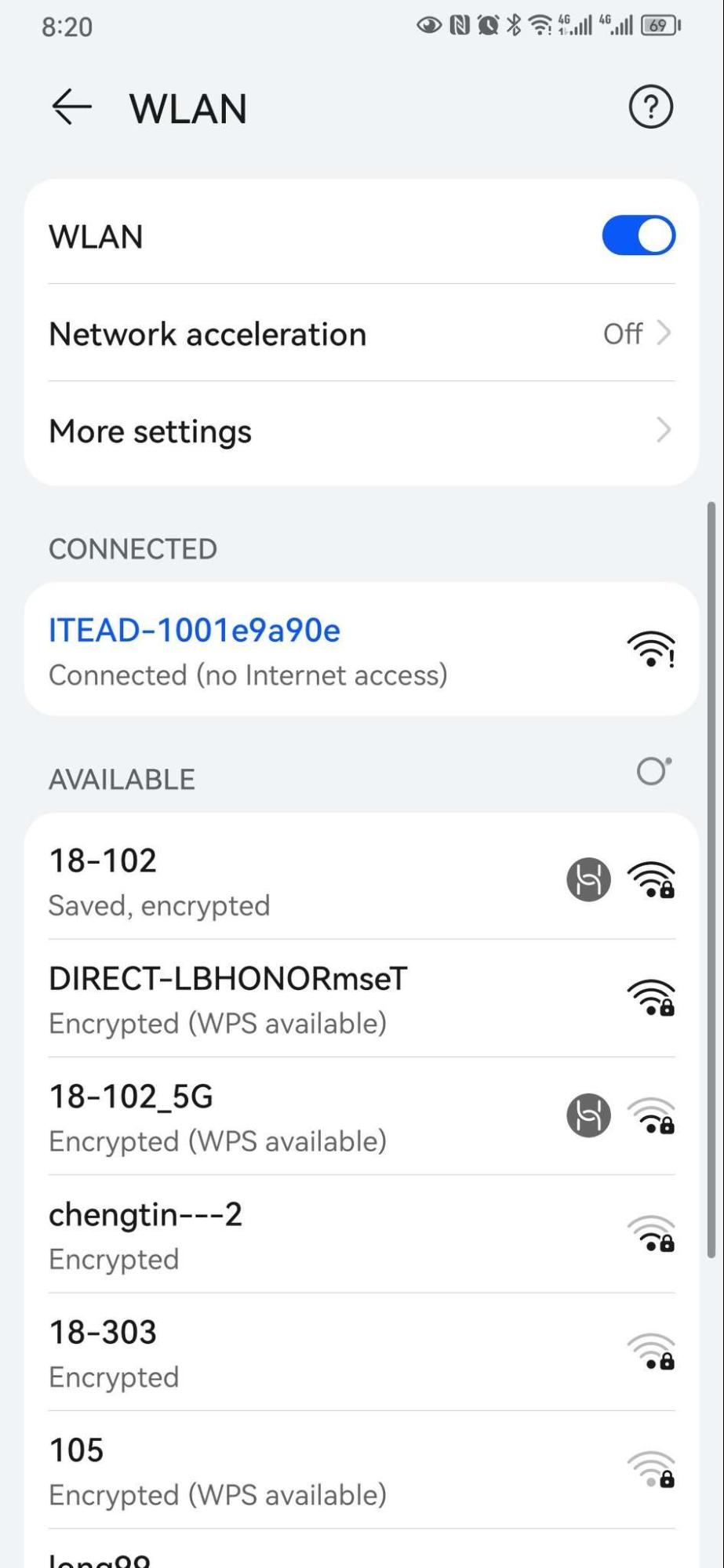

10. Connect your phone to the WiFi network ITEAD-XXXXXXXX with the password 12345678 (refer to figure 1, 2, 3 and 4).

Figure 1

Figure 2

Figure 3

Figure 4

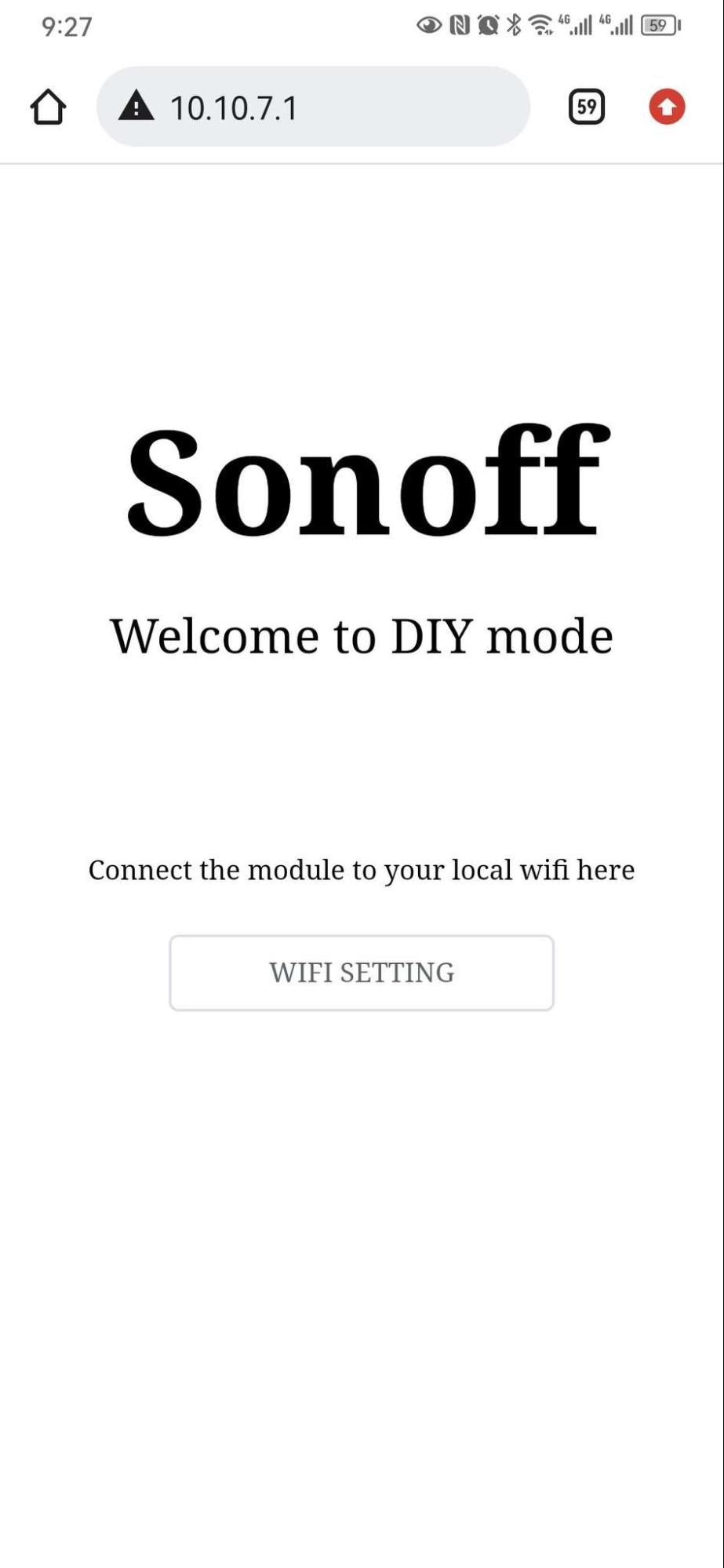

11. Access 10.10.7.1.

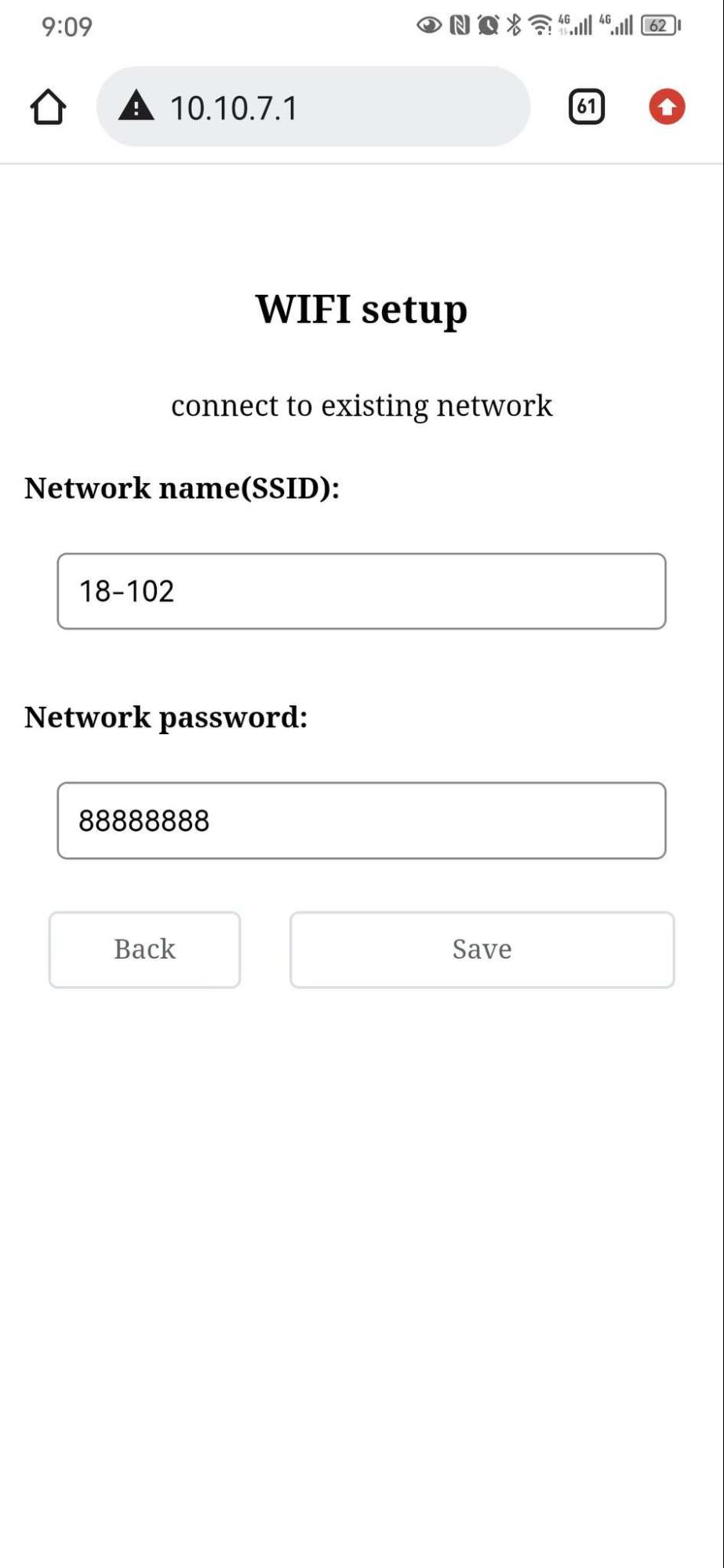

12. Input the WiFi SSID and password for your local network.

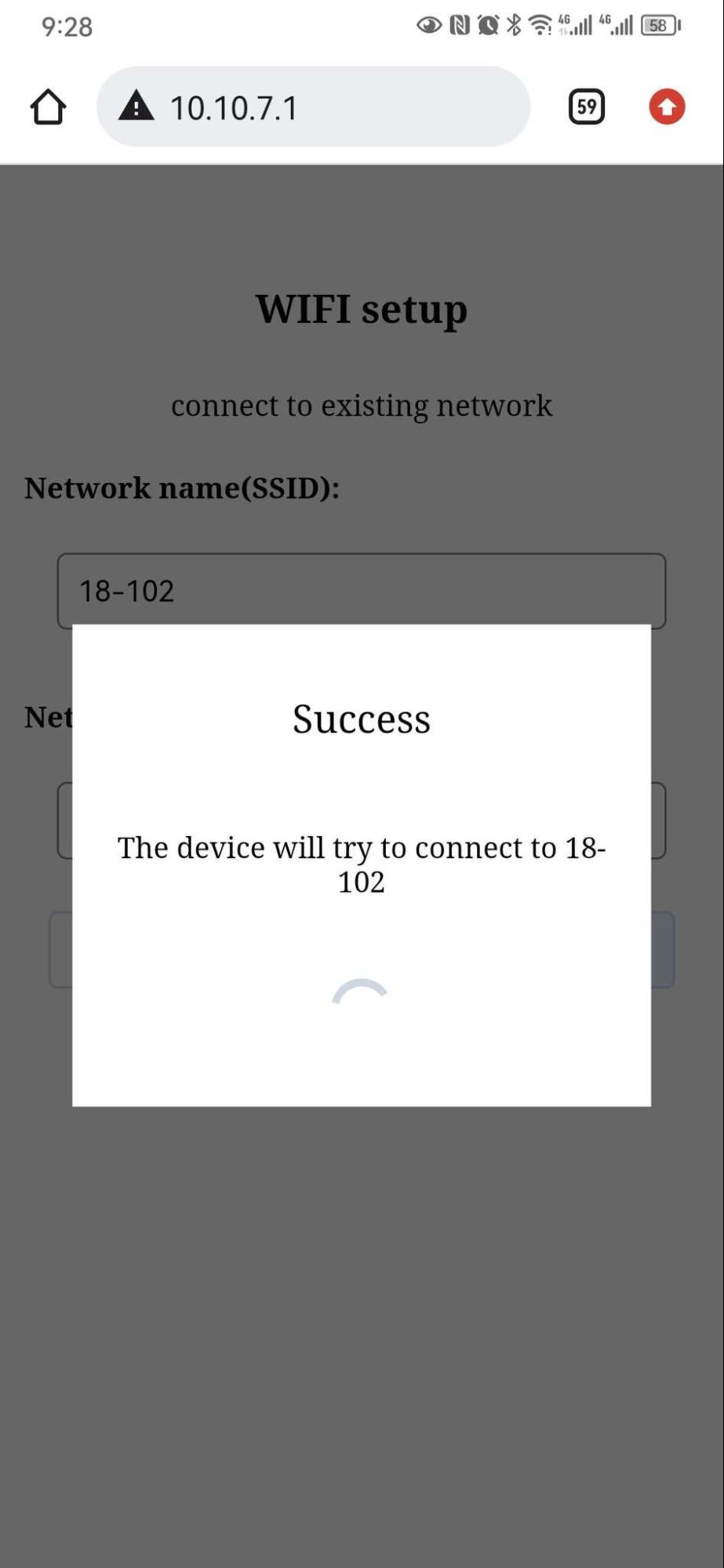

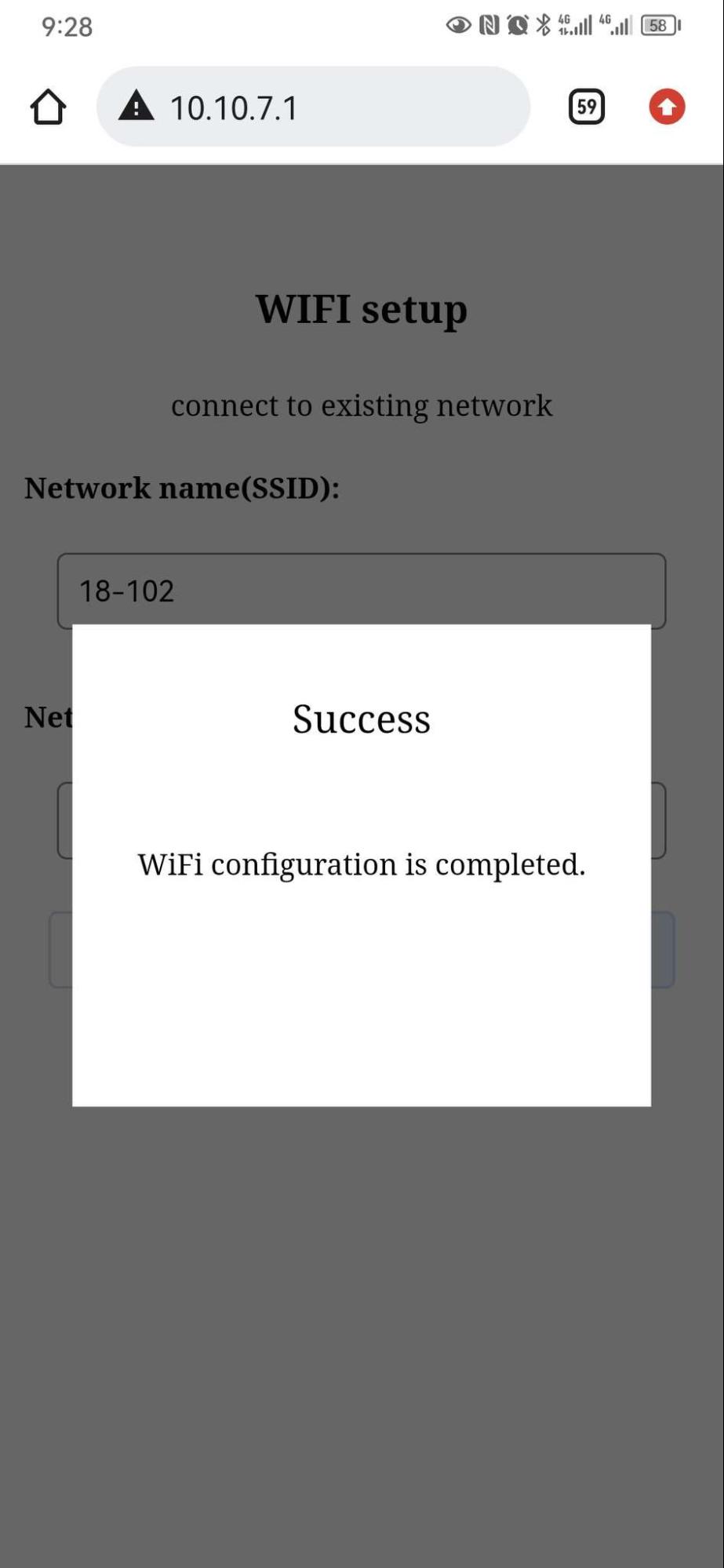

13. Save the settings.
14. Power off the device and then power it on again.
