QR topup with Yoomoney RU

2025-03-22
qr, topup, pay, yoomoney, Russia

The following guide explains how to retrieve your Yoomoney account details and connect it to iCafeCloud for QR payments in Russia.

  1. Navigate to Yoomoney website and register an account [HERE]
  2. Get shopId on the top of Yoomoney dashboard
  3. Integration - API keys - create Secret key, this is your gateway api token.
  4. Integration - HTTP notification - Fill the URL for notifications (you can get your cafe id from iCafeCloud api settings)
    [     https://api.icafecloud.com/api/v2/cafe/YOUR_CAFE_ID/yoomoney ]

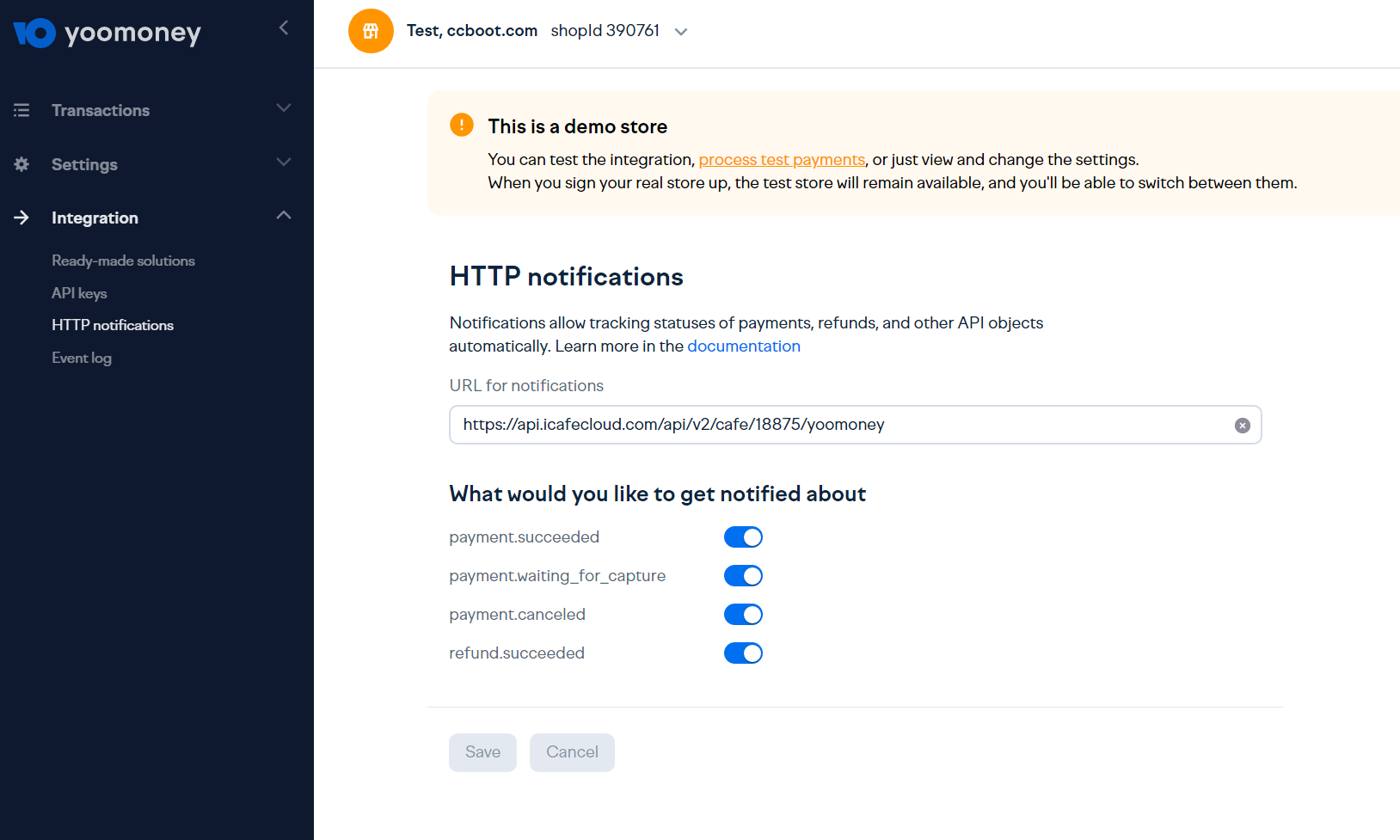

  5. Turn on all the options and Save the changes(Figure 1)

Figure 1

Server side

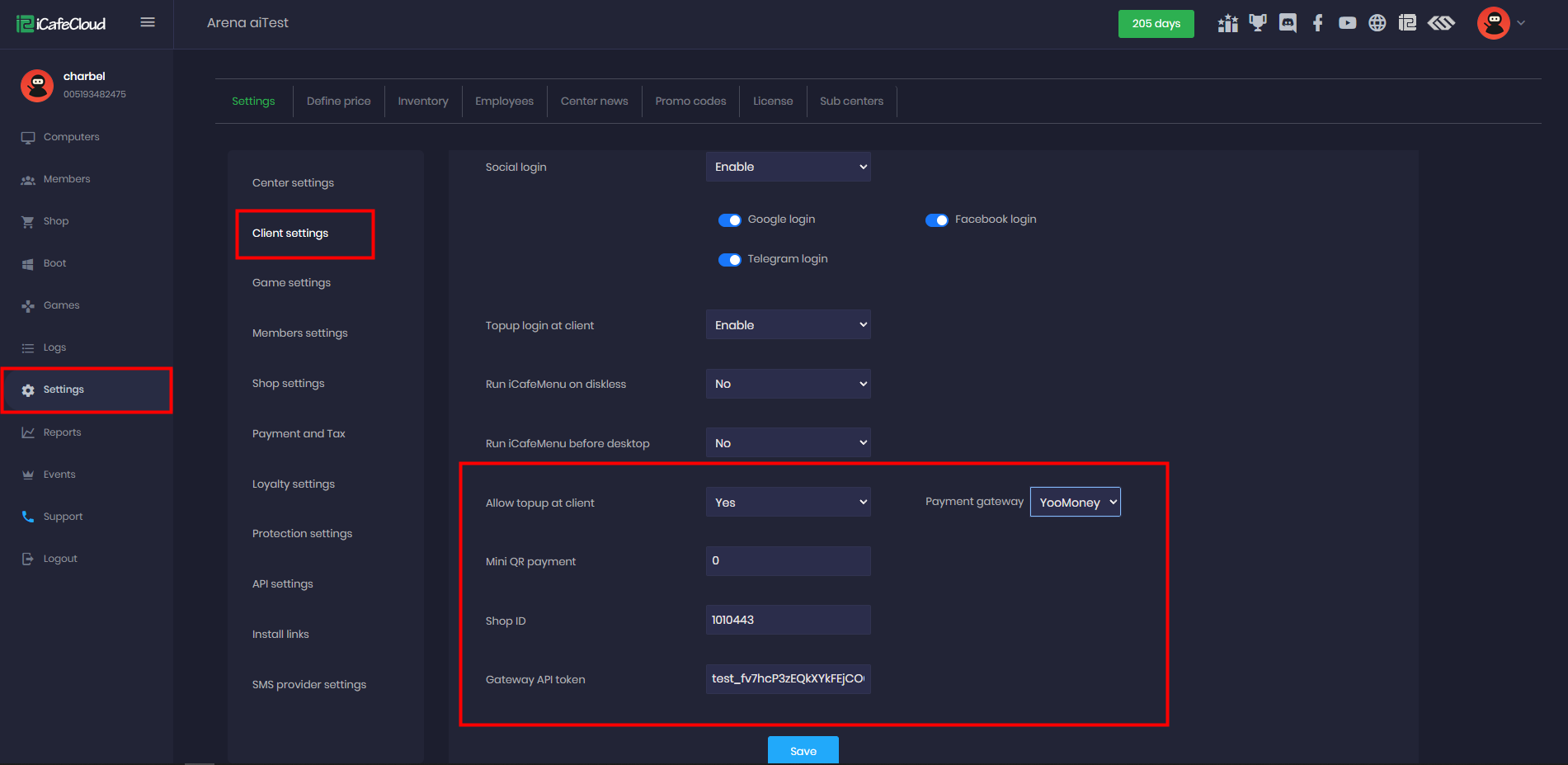

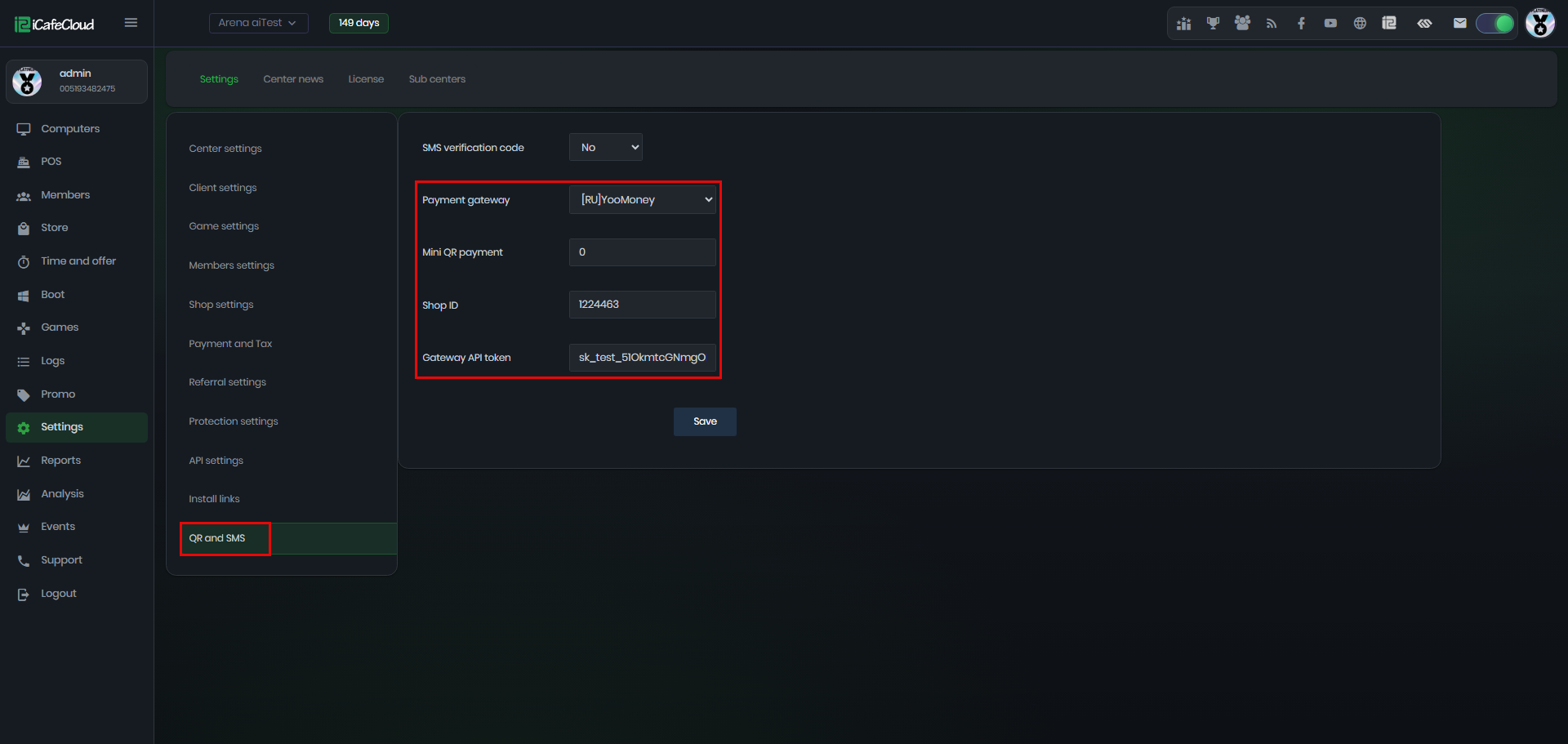

  1. In the iCafeCloud control panel, navigate to Settings > Client and enable the Allow top-up at client option. Then, fill in the Shop ID and Gateway API Token for YooMoney. (Figure 2)
  2. Mini QR Payment: If an amount is set, it represents the minimum payment amount accepted

Figure 2

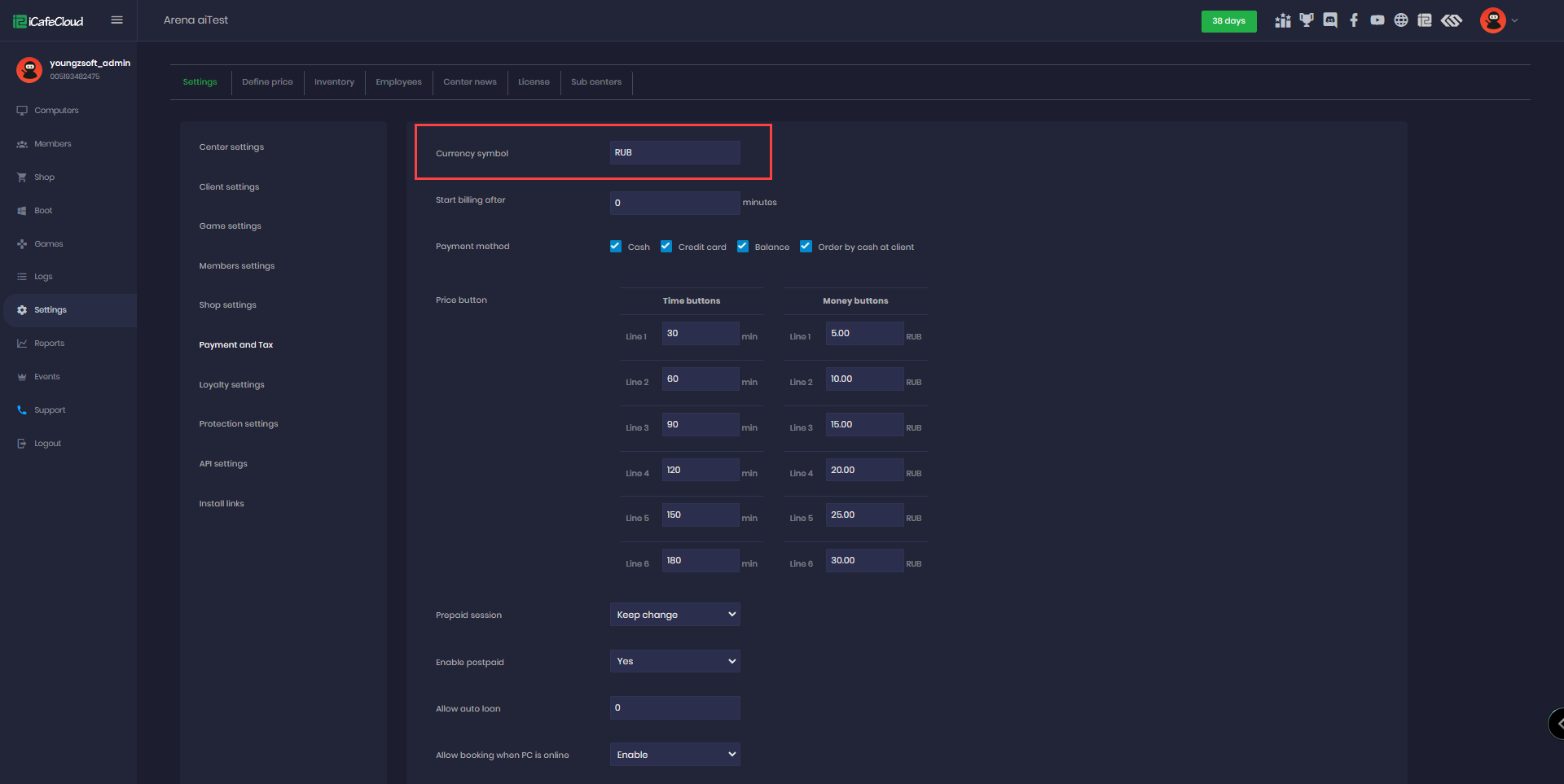

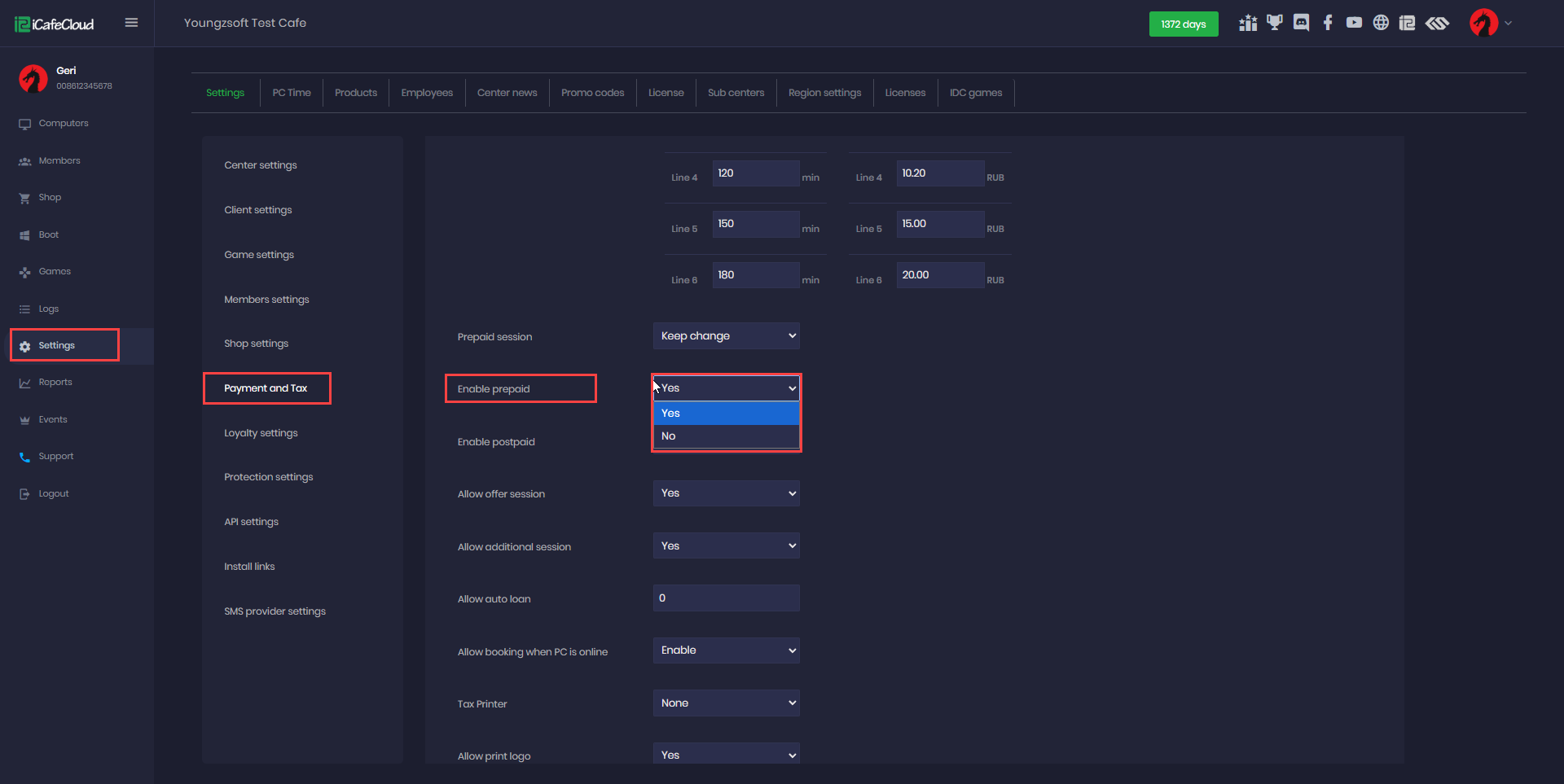

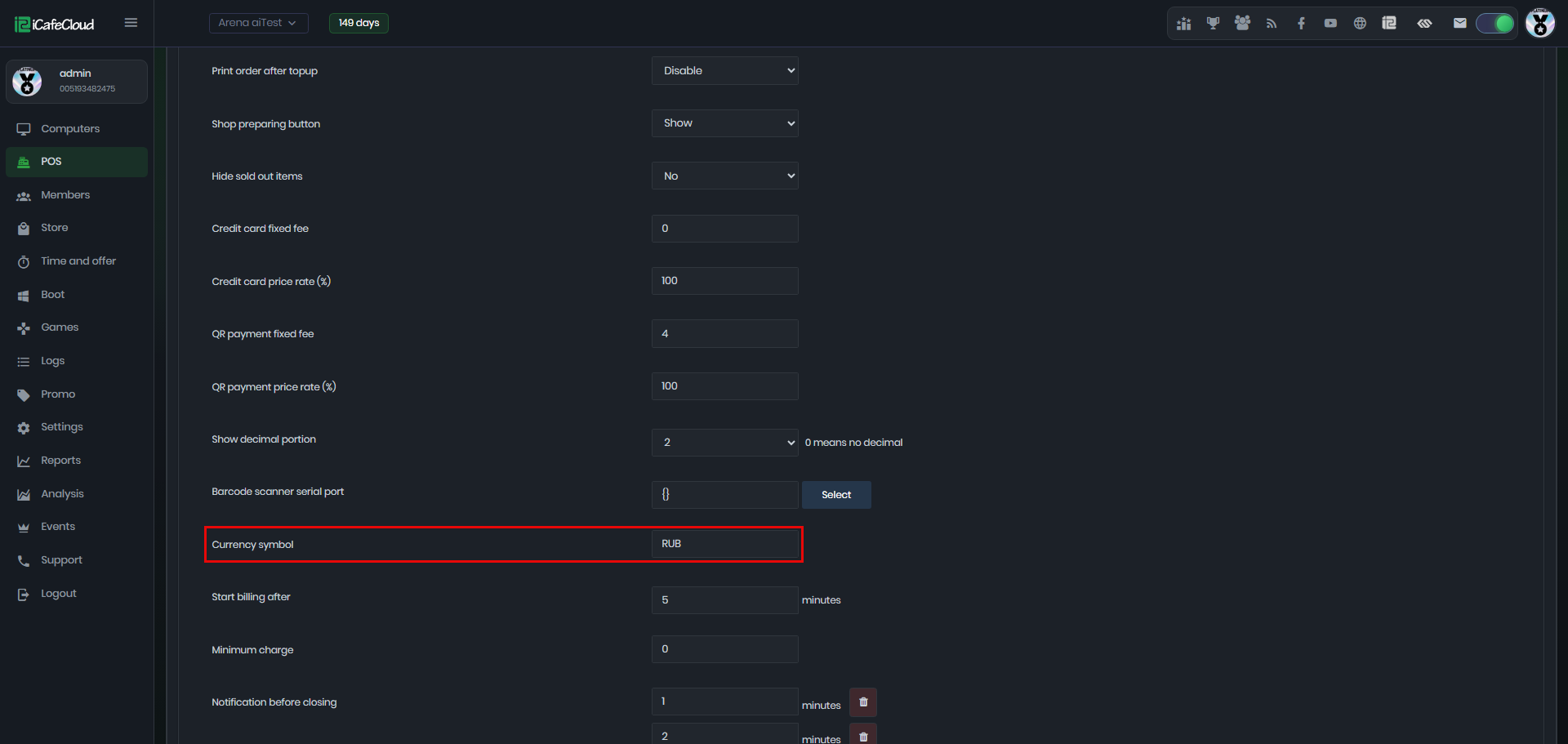

  1. In the iCafeCloud control panel, navigate to Settings > Payment and set the currency symbol to RUB. (Figure 3)

Figure 3

Client side

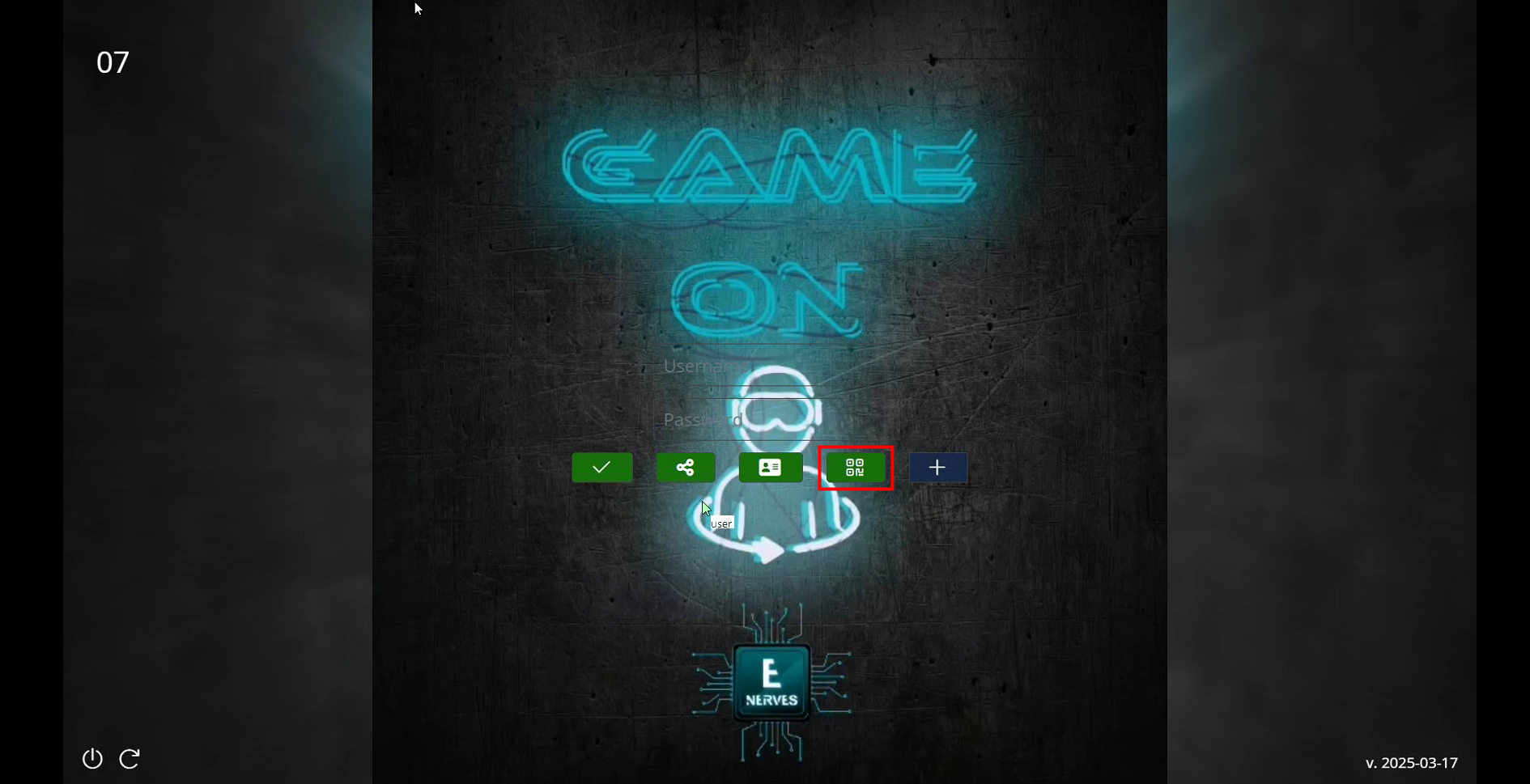

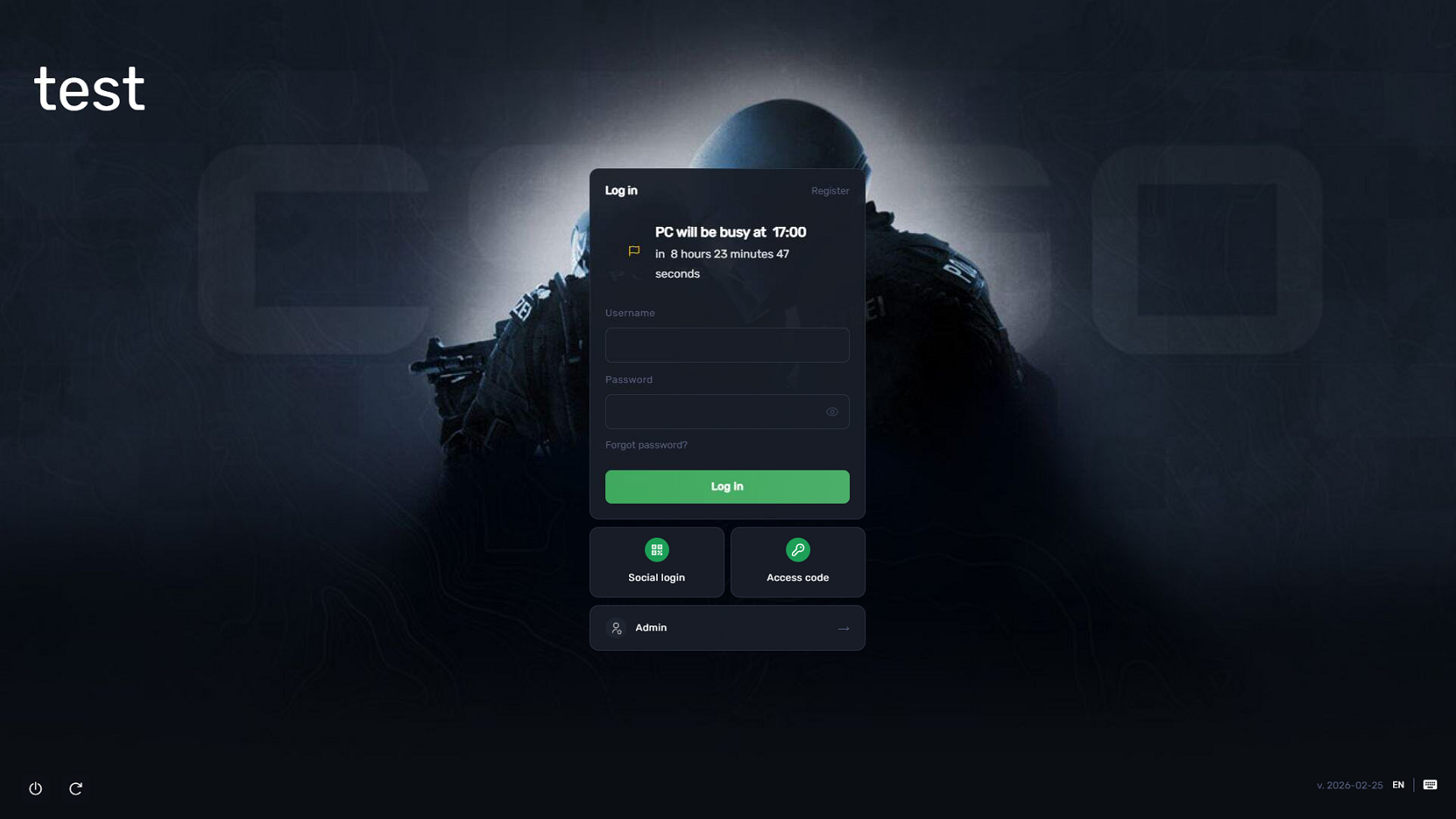

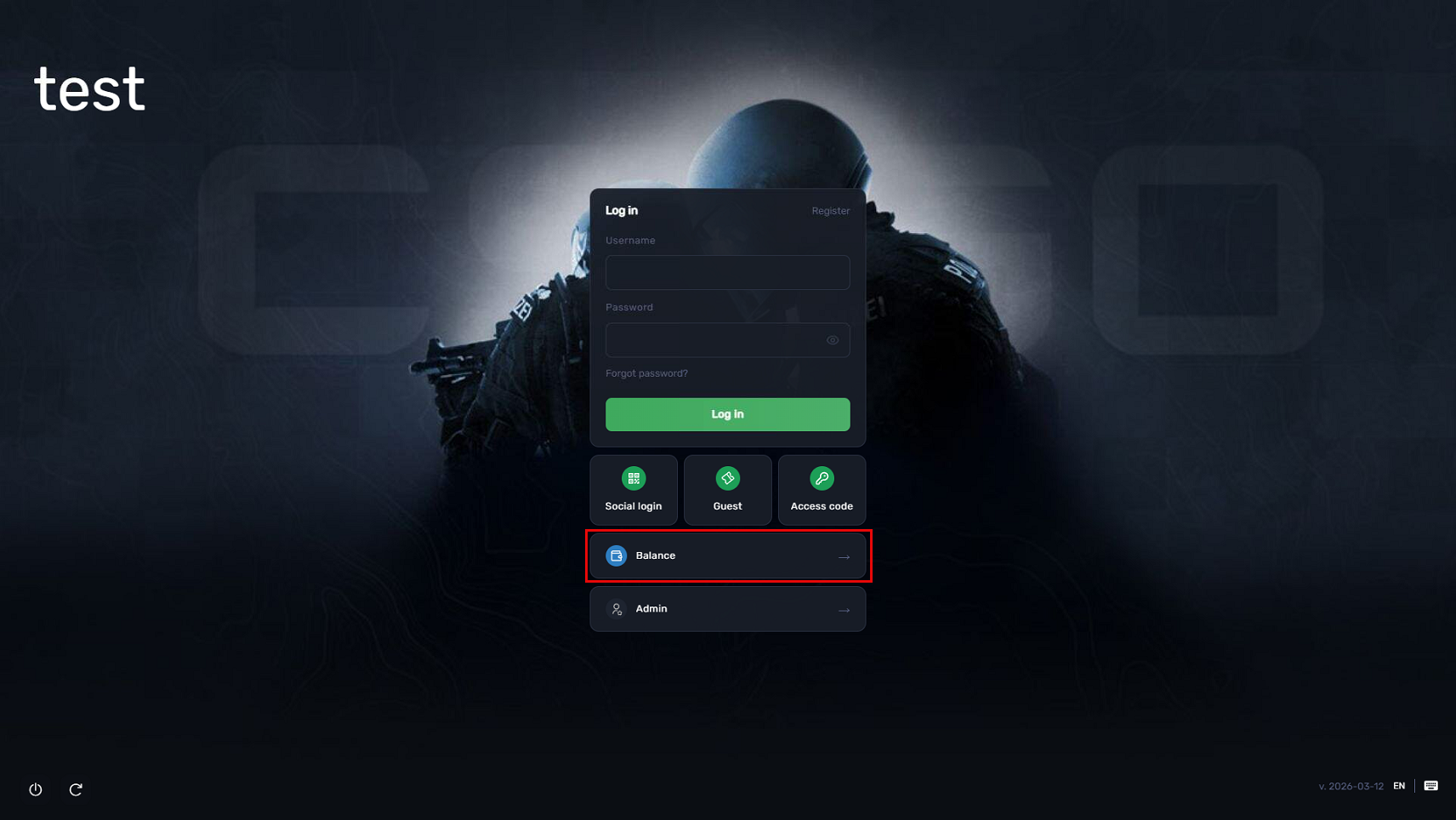

  1. On the iCafeMenu login screen, a new button will be added to allow you to top up directly. (Figure 4)

Figure 4

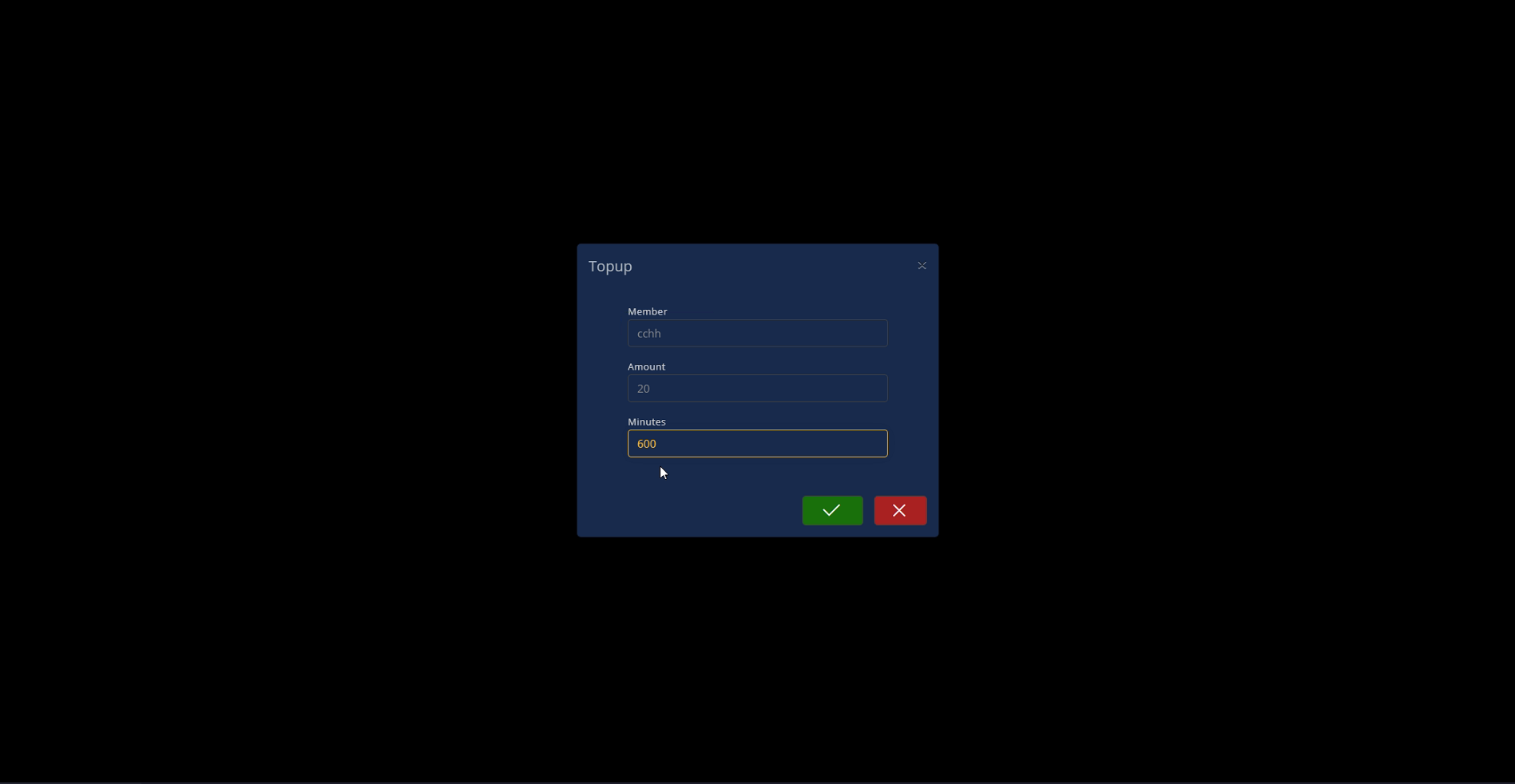

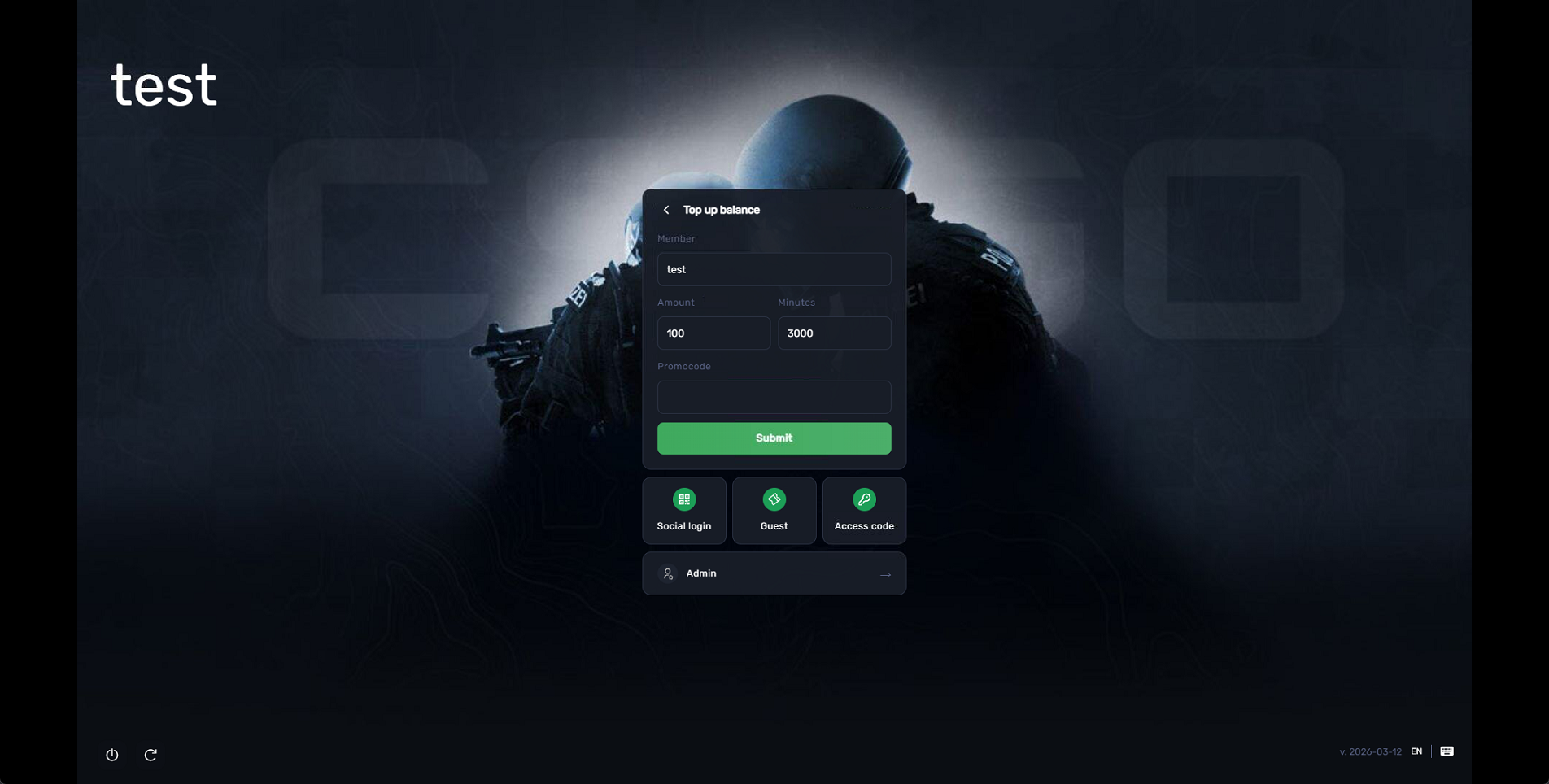

  1. Click on it, and a new window will pop up. Enter the account or playtime you want, and the system will automatically calculate the amount to top up; then click the green button to confirm. (Figure 5)

Figure 5

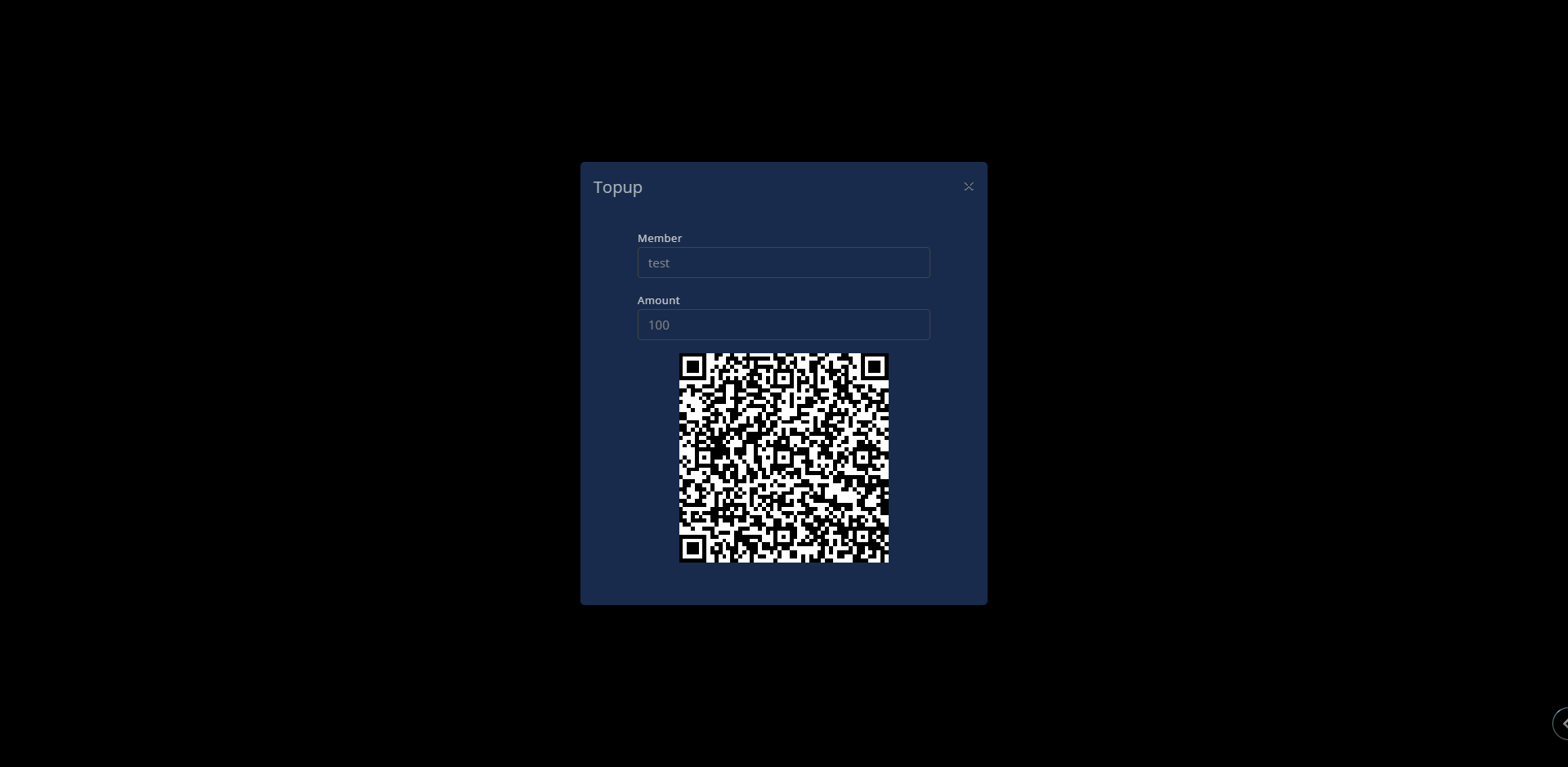

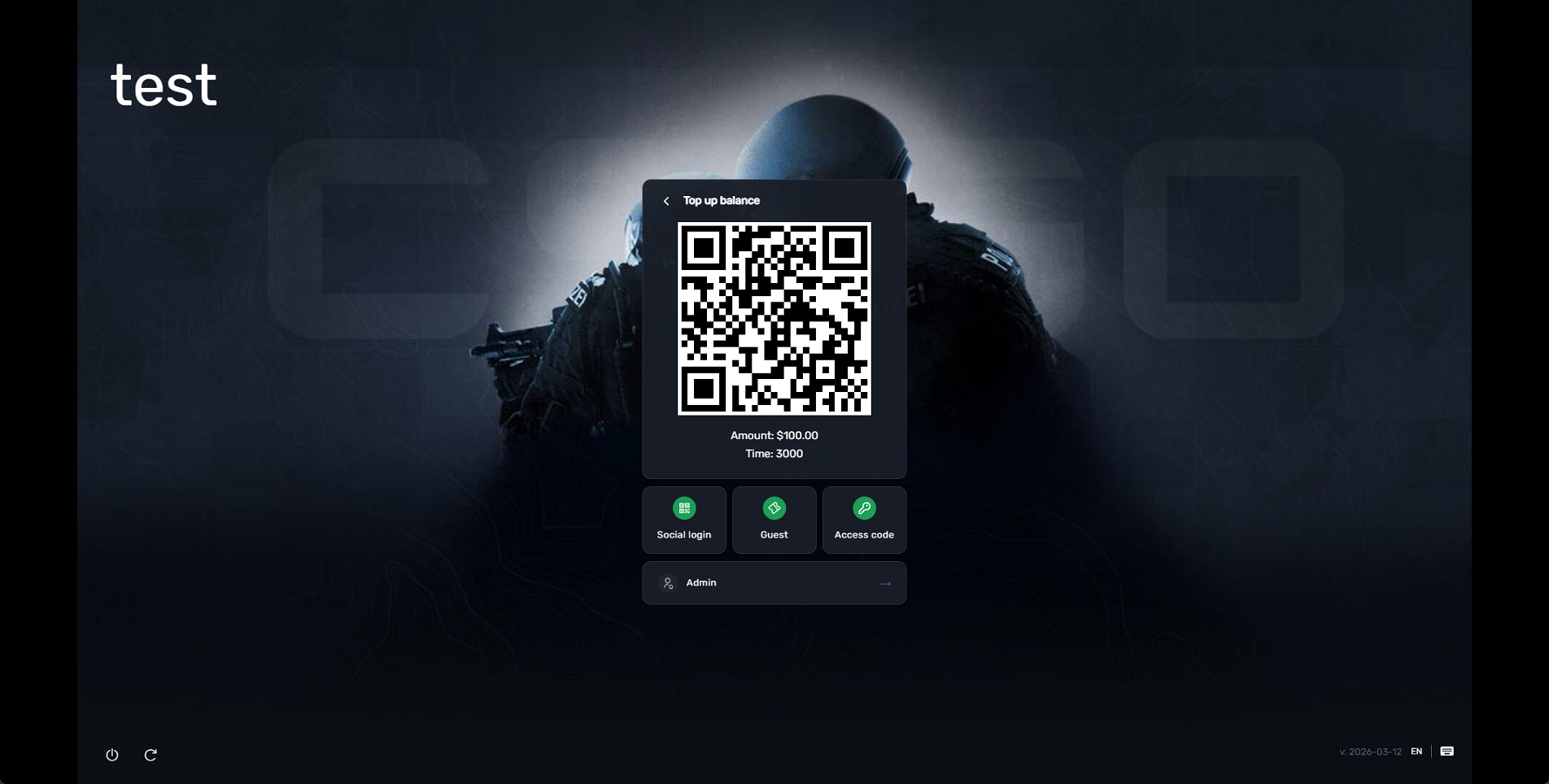

  1. After you click "OK" to confirm the top-up, a QR code will be displayed. (Figure 6)

Figure 6

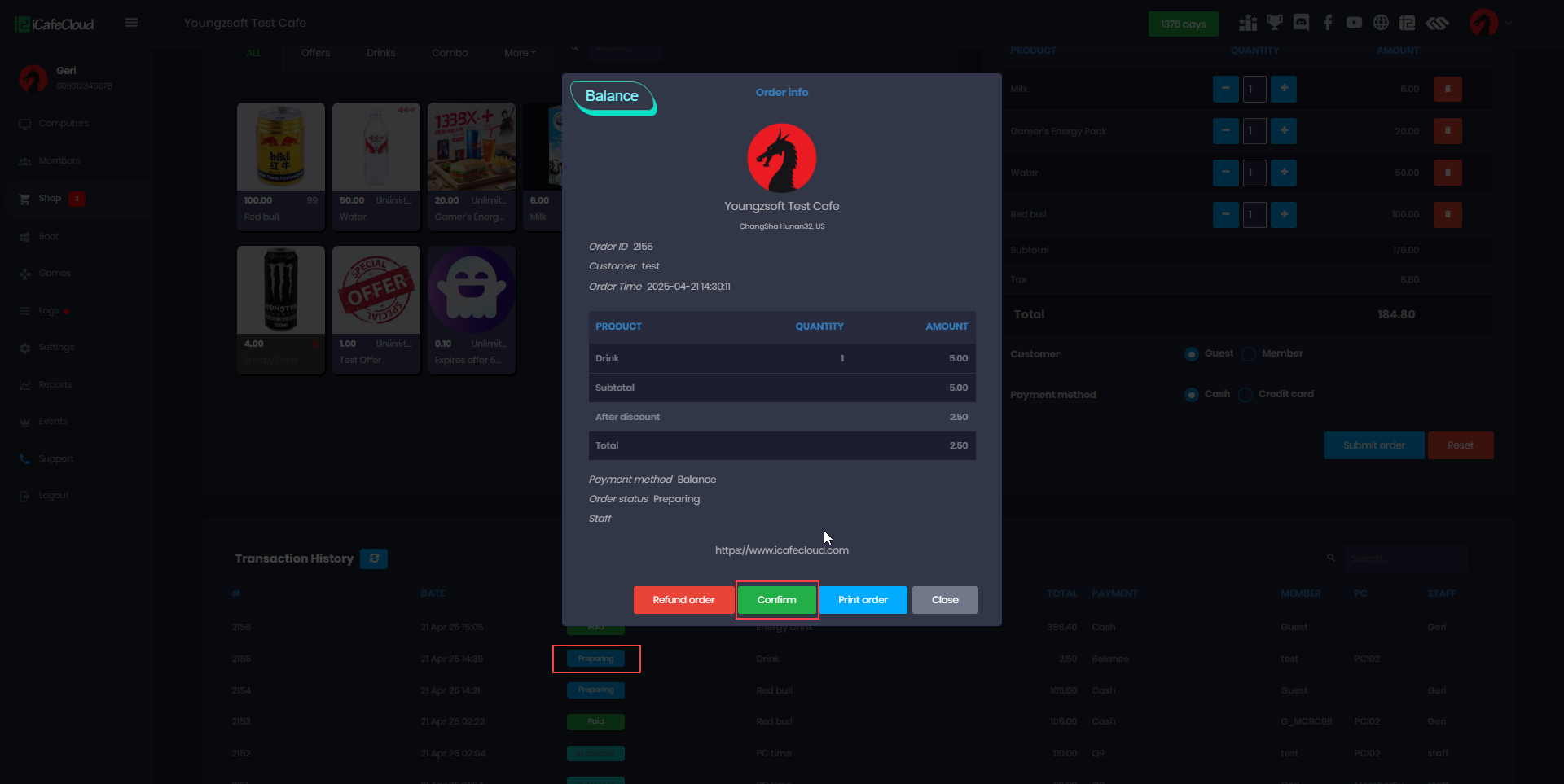

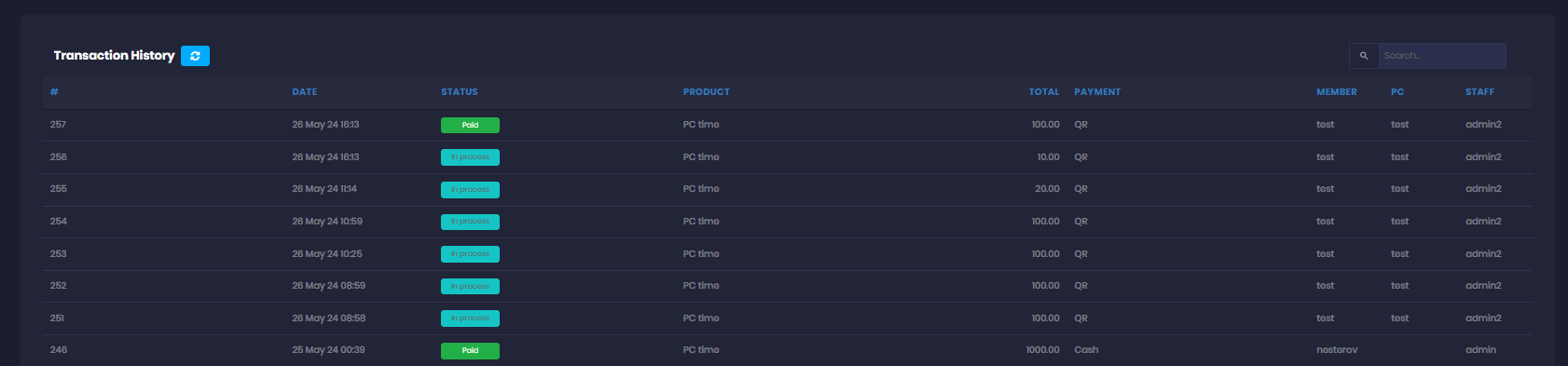

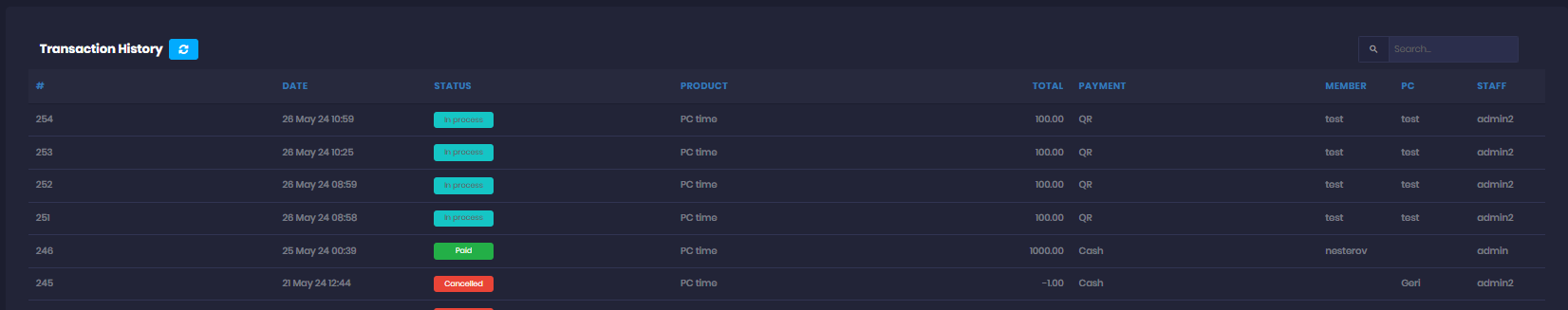

  1. In the admin panel, under the SHOP history transactions, transactions will be displayed as "In Progress" (Figure 7)

Figure 7

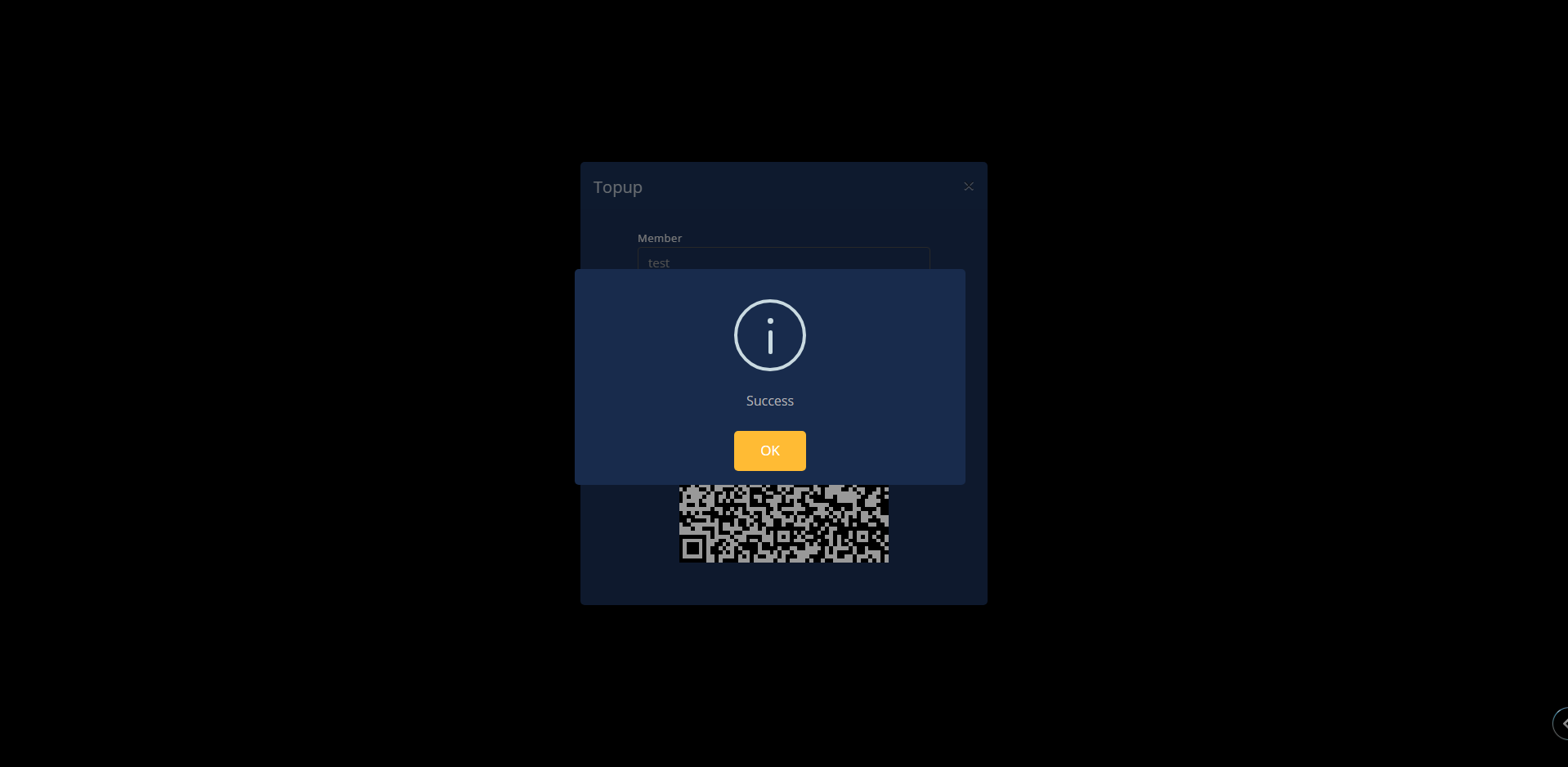

  1. Continue by scanning the QR code, and the transaction will be marked as successful. (Figure 8)

Figure 8

  1. Once the transaction payment has been verified , under the SHOP history transactions, transactions will be displayed as "Paid" (Figure 9)

Figure 9

  1. If the Mini QR payment is set to 10, for example, the minimum payment should be 10; if less, an error will show at the client, preventing the transaction. (Figure 10)

Figure 10
